Home >> Hyundai >> 2021 >> Veloster Turbo >> Repair and Diagnosis >> Accessories & Equipment >> Collision/Avoidance >> Front View Camera System >> Front View Camera Unit >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

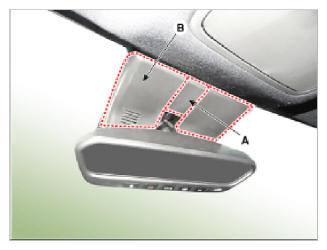

  2. Remove the front view camera (A).
    G13054785Courtesy of HYUNDAI MOTOR AMERICA

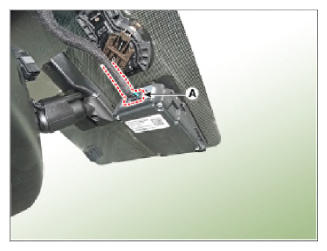

  3. Disconnect the front view camera connector (A).
    G13054786Courtesy of HYUNDAI MOTOR AMERICA

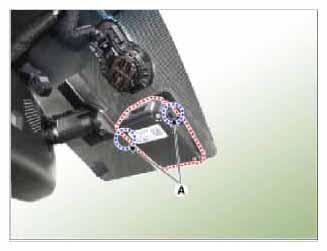

  4. Separate the fixed points (A) of coupler, remove the front view camera.
    G13054787Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When separate the fixed points, be careful not to damage it.
