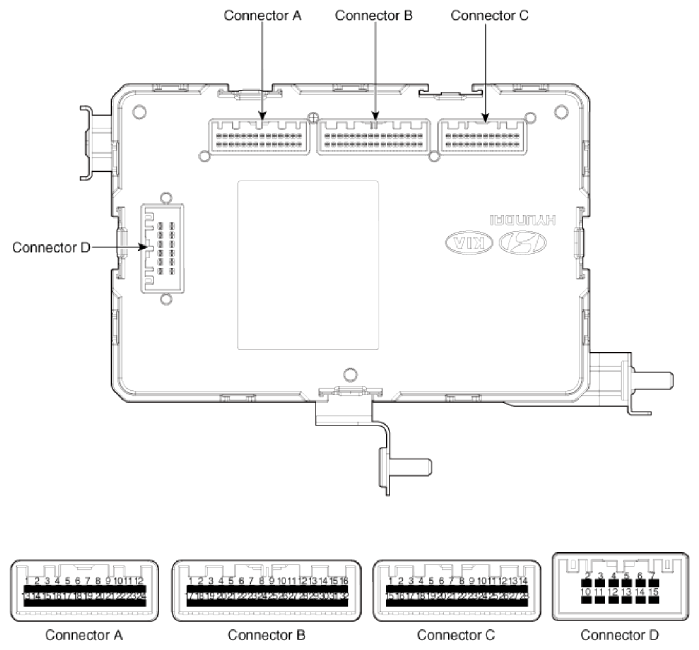

| 1 |
- |
Key switch_input |
Wiper low relay_output |
IGN1 |
| 2 |
- |
Steering wheel heated switch_input |
Auto light sensor ground_output |
IGN2_Steering wheel heated power |
| 3 |
Rear left seat belt indicator |
- |
PDW Switch indicator_output |
IGN2_Steering wheel heated power |
| 4 |
Assist seat belt indicator |
- |
Steering wheel heated indicator_output |
Steering wheel heated_output |
| 5 |
- |
Auto light sensor_input |
- |
Room lamp_output |
| 6 |
Rear right seat belt indicator |
- |
- |
Battery + |
| 7 |
- |
- |
Crash input |
- |
| 8 |
- |
PDW Option_input |
Auto light sensor signal_input |
- |
| 9 |
Mirror unfolding relay_output |
Key inter lock switch |
NTC Sensor_input |
PDW-R (output) |
| 10 |
Rear wiper relay_output |
sunroof switch_input |
Head lamp high beam switch_input |
PDW_F (output) |
| 11 |
- |
PDW ON Switch_input |
Rear wiper switch_input |
Ground |
| 12 |
- |
Multifunction switch_input |
Front wiper int _input |
|
| 13 |
- |
- |
Front wiper switch_input |
|
| 14 |
- |
Auto light _input (Option) |
Foglamp switch_input |
|
| 15 |
ATM Solenoid |
- |
Wiper high relay_output |
|
| 16 |
PDW buzzer_output |
- |
Auto light power_output |
|
| 17 |
- |
- |
Sunroof ENABLE (High)_output |
| 18 |
- |
- |
- |
| 19 |
- |
C_CAN (High) |
P_Extenal buzzer_output |
| 20 |
- |
C CAN (Low) |
- |
| 21 |
- |
B CAN (Low) |
Wiper low BUS switch_input |
| 22 |
- |
B CAN (High) |
NTC Ground _output |
| 23 |
Mirror folding relay_output |
- |
IGN2 |
| 24 |
- |
LIN 3 (Rain sensor) |
ACC |
| 25 |
|
LIN 1 (PDW) |
Rear washer switch_input |
| 26 |
- |
Front washer switch_input |
| 27 |
- |
Wiper Parking switch_input |
| 28 |
Rear defogger switch _input |
Brake switch_input |
| 29 |
Rain sensor_input (Option) |
|
| 30 |
- |
| 31 |
- |
| 32 |
- |
