Home >> Hyundai >> 2021 >> Veloster Turbo >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Diagnostic >> Repair Procedures >> Inspection >> Neutralization Status Check

Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

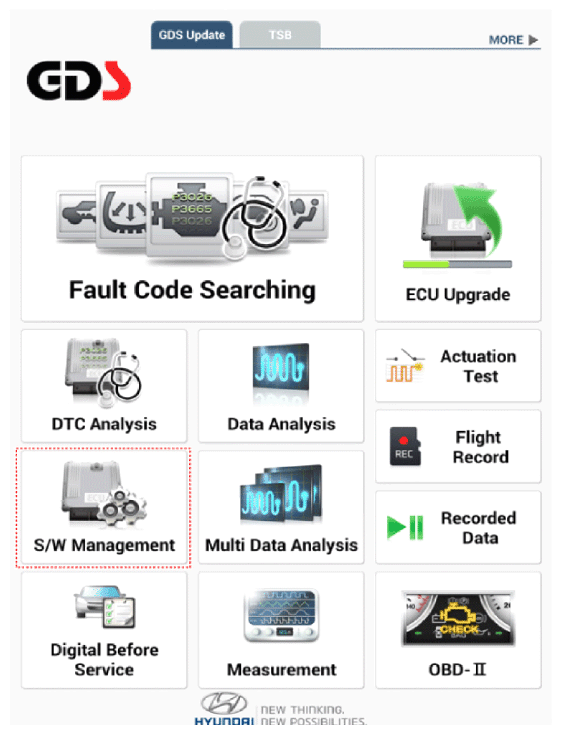

  2. Select the 'S/W Management' and 'Car model'.
    G13054264Courtesy of HYUNDAI MOTOR AMERICA

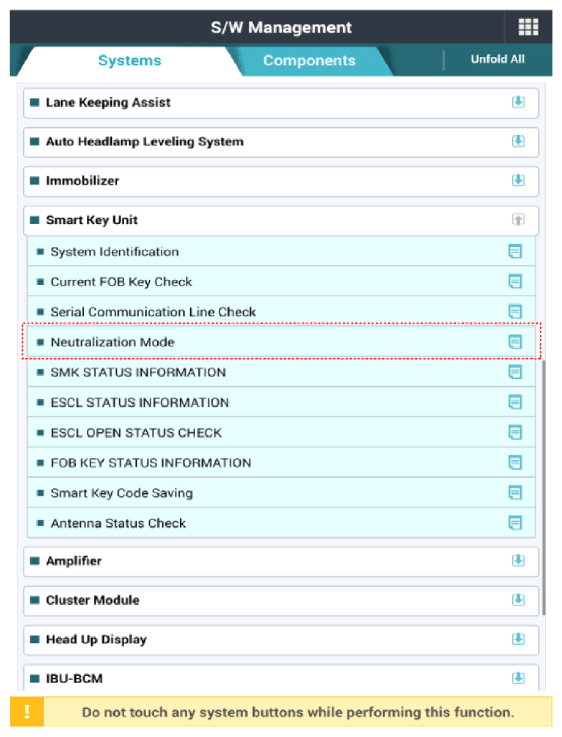

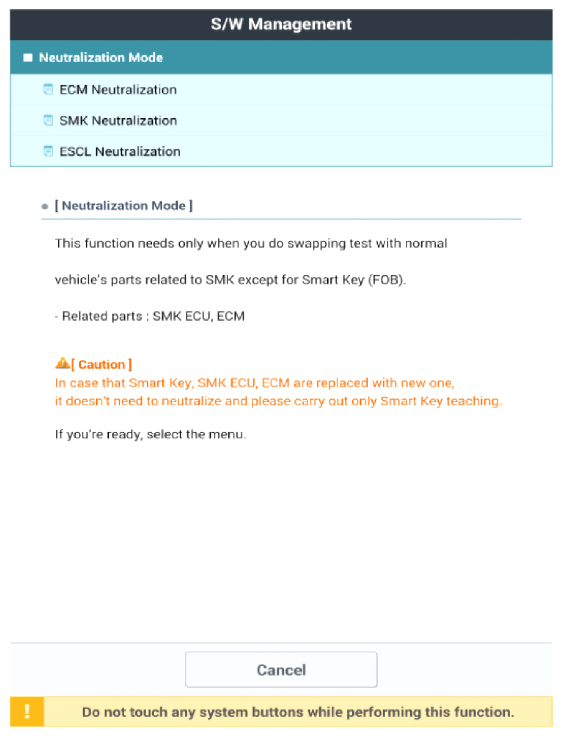

  3. Select the 'Smart Key Unit' and 'Neutralization Mode'.
    G13054265Courtesy of HYUNDAI MOTOR AMERICA
    G13054266Courtesy of HYUNDAI MOTOR AMERICA
