Home >> Hyundai >> 2021 >> Veloster Turbo >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> Heated Oxygen Sensor (HO2S) >> Repair Procedures >> Removal >> Bank 1/Sensor 1

Bank 1/Sensor 1

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the connector (A), and then remove the sensor (B).
    NOTE:
    • Note that the SST (Part No.: 09392-1Y100) is useful when removing the heated oxygen sensor.
    G13052588Courtesy of HYUNDAI MOTOR AMERICA

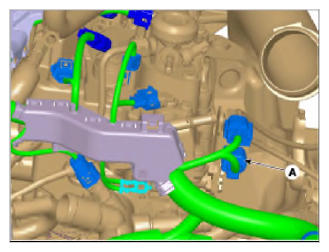

    G13052589Courtesy of HYUNDAI MOTOR AMERICA

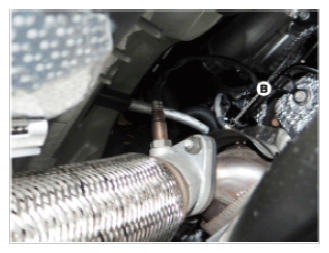

    G13052590Courtesy of HYUNDAI MOTOR AMERICA
