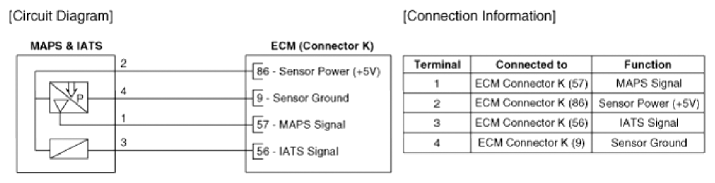

Home >> Hyundai >> 2021 >> Veloster Turbo >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> Intake Air Temperature Sensor (IATS) >> Schematic Diagrams >> Circuit Diagram >> Notes
