Home >> Hyundai >> 2021 >> Venue SE >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Smart Key System >> Smart Key Unit >> Repair Procedures >> Removal >> Buzzer

Repair Procedures: Removal: Buzzer

  1. Disconnect the negative (-) battery terminal.
  2. Remove the RH front wheel guard.

    (Refer to BODY - "FRONT WHEEL GUARD ")

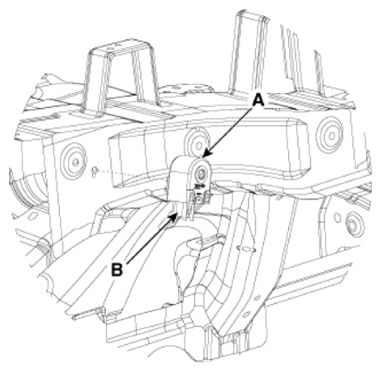

  3. Remove the buzzer (A) after disconnecting the connector (B).
G14696040Courtesy of HYUNDAI MOTOR AMERICA
