Repair Procedures: Disassembly

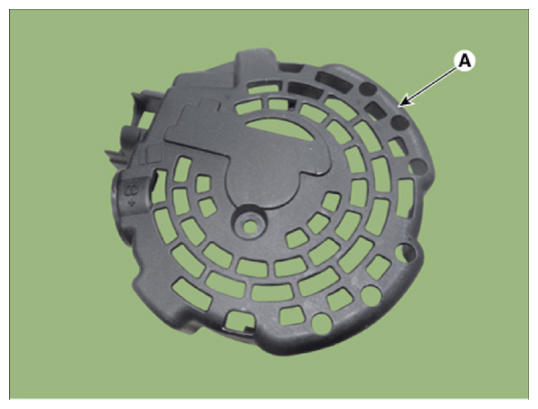

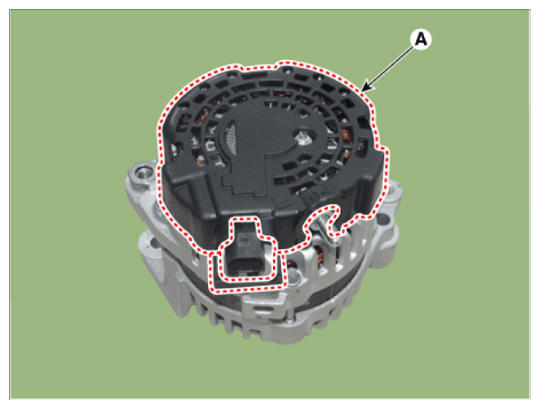

  1. Remove the rear cover (A).
    G14694238Courtesy of HYUNDAI MOTOR AMERICA
    G14694239Courtesy of HYUNDAI MOTOR AMERICA

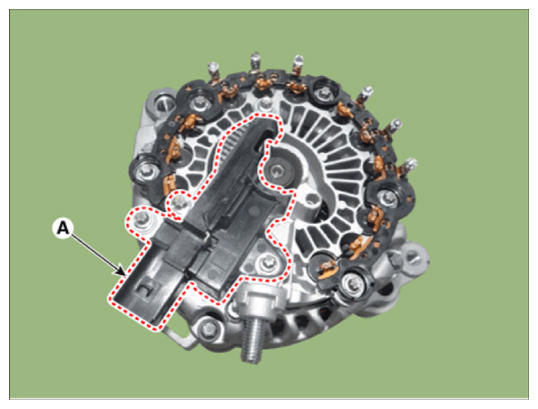

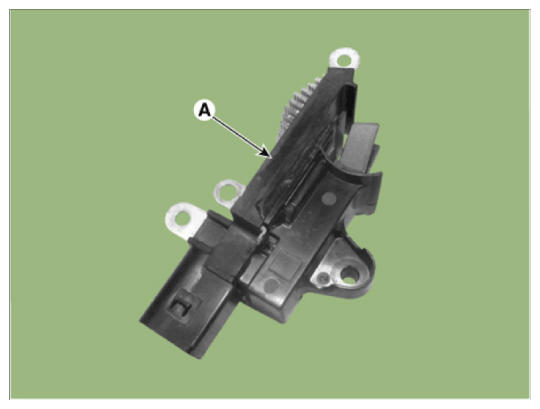

  2. Remove the mounting bolts (A) and the regulator assembly.
    NOTE:
    • When installing, replace with new OAP cap.
    G14694240Courtesy of HYUNDAI MOTOR AMERICA
    G14694241Courtesy of HYUNDAI MOTOR AMERICA

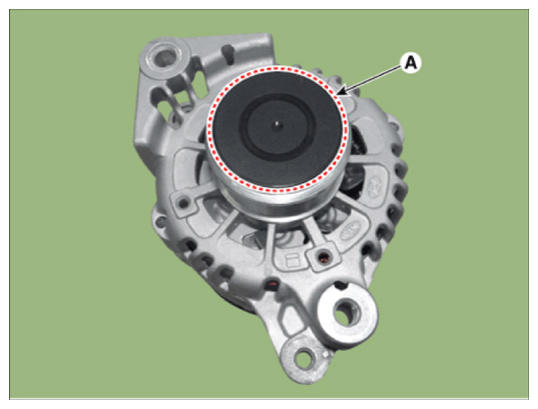

  3. Remove the OAP cap.
    G14694242Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When installing, replace with new OAP cap.

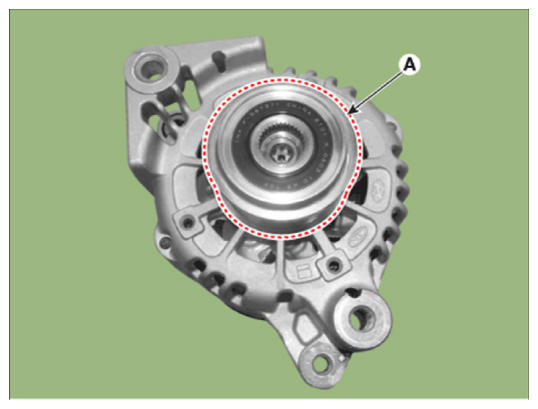

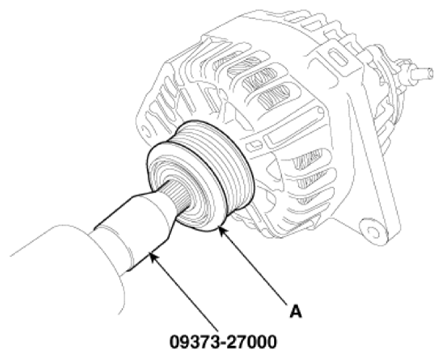

  4. Remove the OAP pulley (A) using the special tool (09373-27000).
    G14694243Courtesy of HYUNDAI MOTOR AMERICA
    G14694244Courtesy of HYUNDAI MOTOR AMERICA

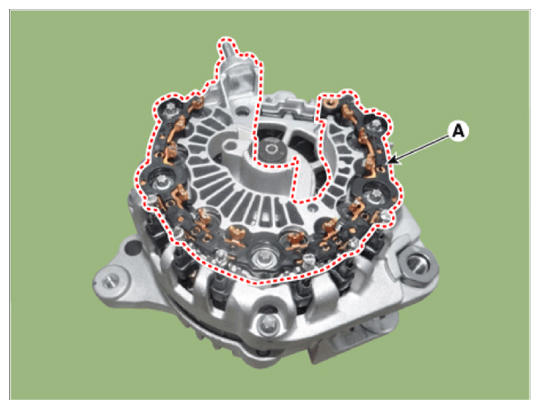

  5. Remove the rectifier assembly (A) after disconnecting the stator leads.
    G14694245Courtesy of HYUNDAI MOTOR AMERICA

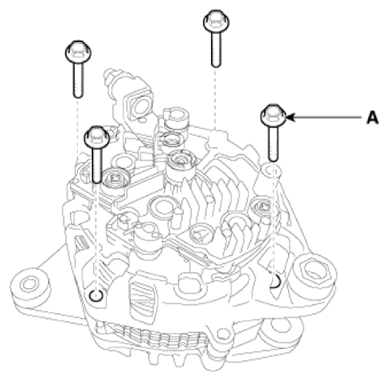

  6. Remove the 4 through bolts (A).
    G14694246Courtesy of HYUNDAI MOTOR AMERICA

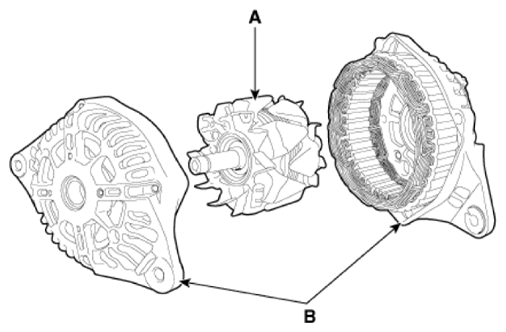

  7. Disconnect the rotor (A) and bracket (B).
    G14694247Courtesy of HYUNDAI MOTOR AMERICA
  8. Install in the reverse order of removal.
