Home >> Hyundai >> 2021 >> Venue SE >> Repair and Diagnosis >> Electrical >> Starter >> Button Engine Start System >> Start/Stop Button >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

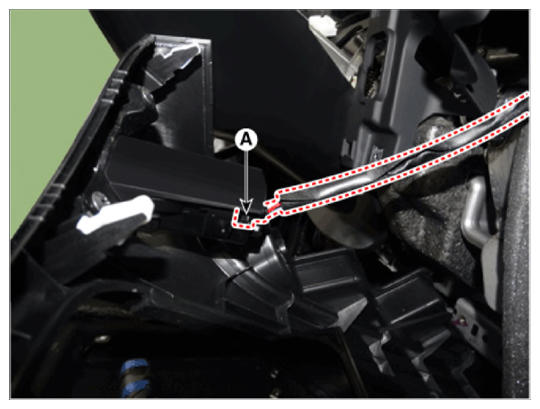

  3. Disconnect the SSB connector (A).
    G14702443Courtesy of HYUNDAI MOTOR AMERICA

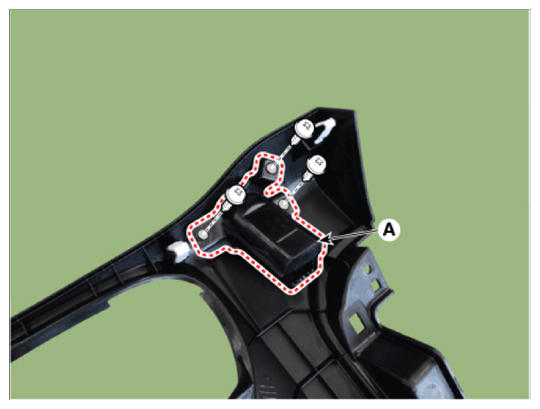

  4. Remove the SSB button (A) after loosening mounting screws.
G14702444Courtesy of HYUNDAI MOTOR AMERICA
