Repair Procedures: Disassembly

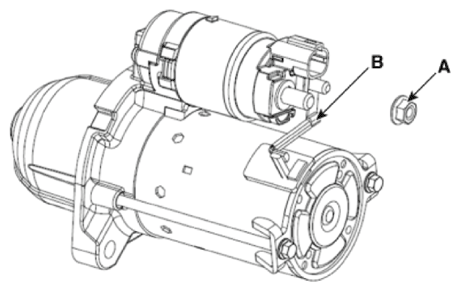

Loosen the flange nut (A) and disconnect the M-terminal on the magnet switch assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA

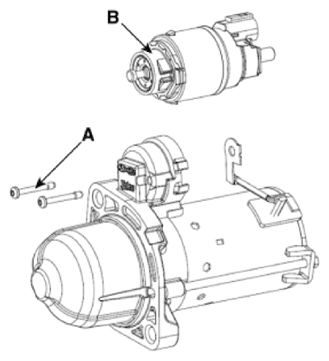

After loosening the screws (A), detach the magnet switch assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA

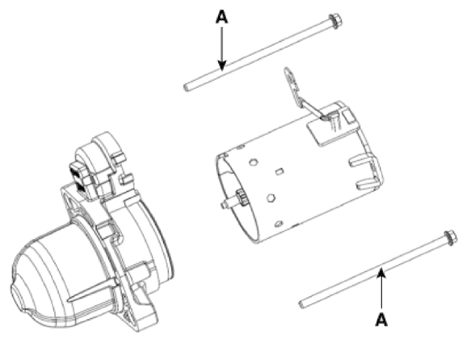

Loosen the through bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA

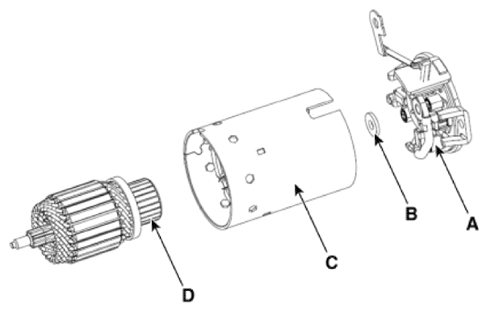

Remove the brush holder assembly (A), adjust washer (B), yoke (C), and armature (D).

Courtesy of HYUNDAI MOTOR AMERICA

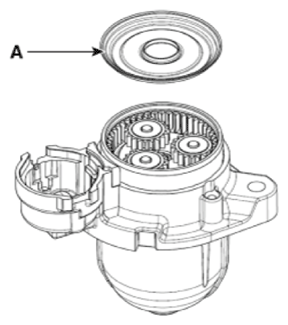

Remove the gasket sheet (A).

Courtesy of HYUNDAI MOTOR AMERICA

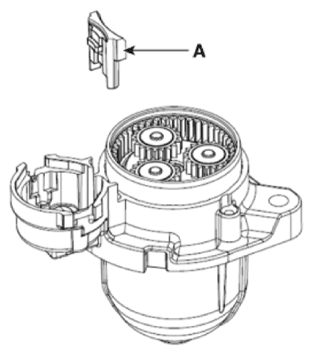

Remove the lever rest (A).

Courtesy of HYUNDAI MOTOR AMERICA

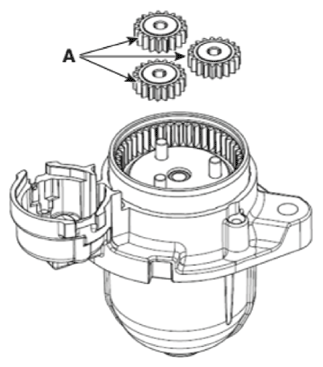

Disconnect the satellite gear (A).

Courtesy of HYUNDAI MOTOR AMERICA

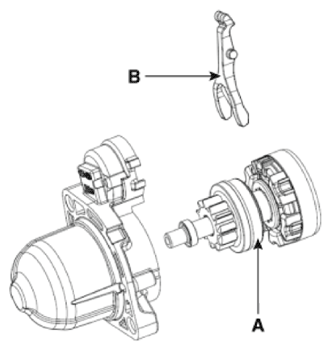

Disconnect the reducer assembly (A) and lever (B).

Courtesy of HYUNDAI MOTOR AMERICA

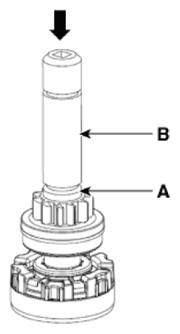

Press the stopper (A) using a socket (B).

Courtesy of HYUNDAI MOTOR AMERICA

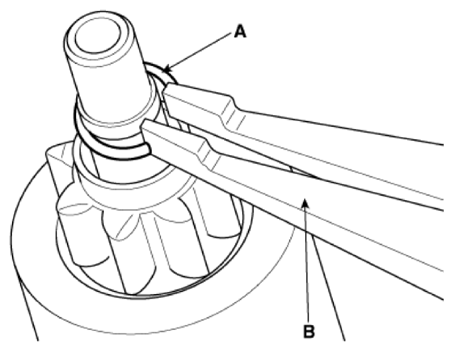

After removing the stop ring (A) using stop ring pliers (B).

Courtesy of HYUNDAI MOTOR AMERICA

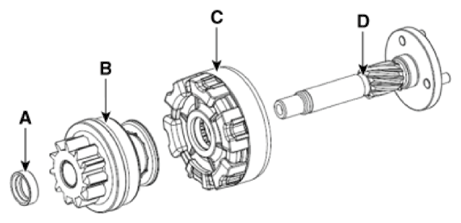

Disconnect the stopper (A), overrunning clutch (B), internal gear (C) and drive shaft (D).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

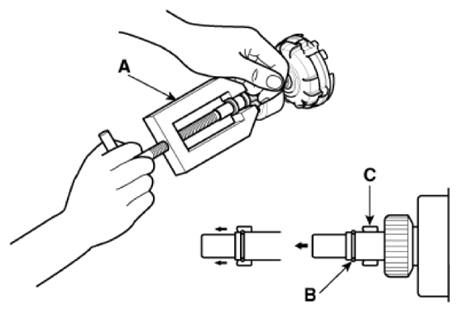

Using a suitable pulling tool (A), pull the overrunning clutch stopper (C) over the stop ring (B).

Courtesy of HYUNDAI MOTOR AMERICA
