Repair Procedures: Installation

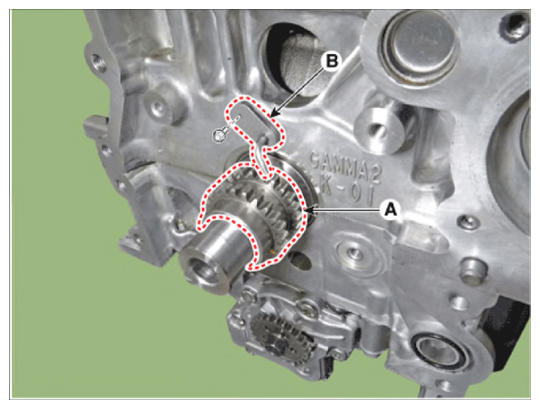

Install the crankshaft sprocket (A) and timing chain oil jet (B).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

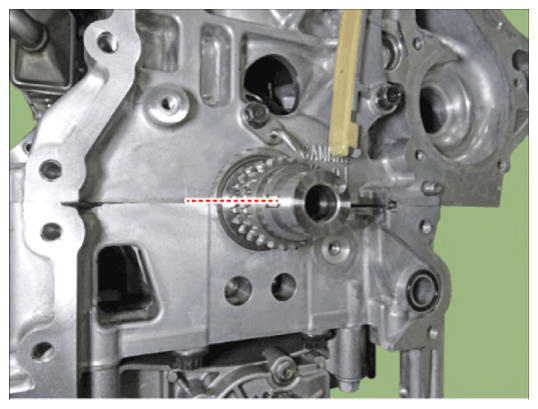

Place the crankshaft key at the left 180°.

Courtesy of HYUNDAI MOTOR AMERICA
Install the oil pump chain.
(Refer to Lubrication System - "OIL PUMP ")

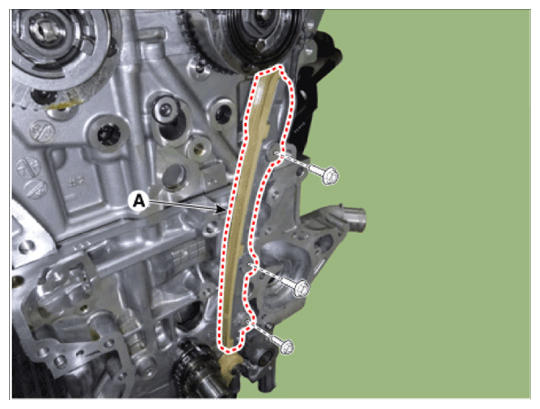

Install the timing chain guide (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

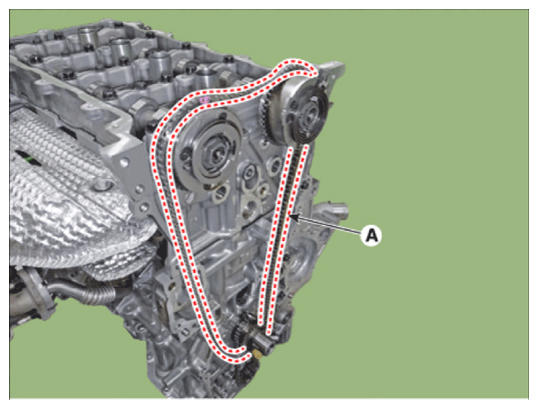

Install the timing chain (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When installing the timing chain, be sure that the timing mark of each sprocket is matched with the timing mark (color link) of the timing chain.

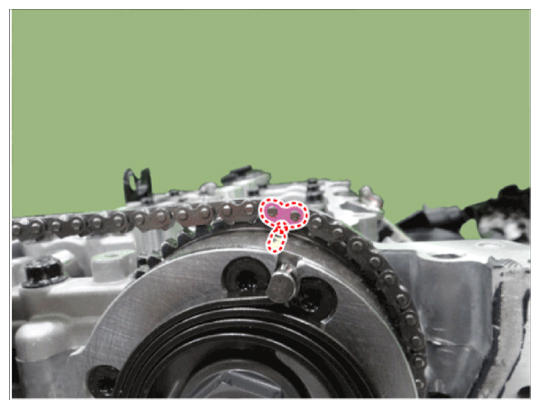

[Intake CVVT Timing Mark]

Courtesy of HYUNDAI MOTOR AMERICA

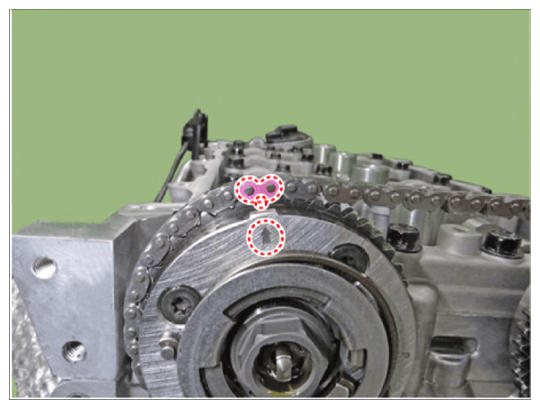

[Exhaust CVVT Timing Mark]

Courtesy of HYUNDAI MOTOR AMERICA

[Crankshaft Sprocket Timing Mark]

Courtesy of HYUNDAI MOTOR AMERICA

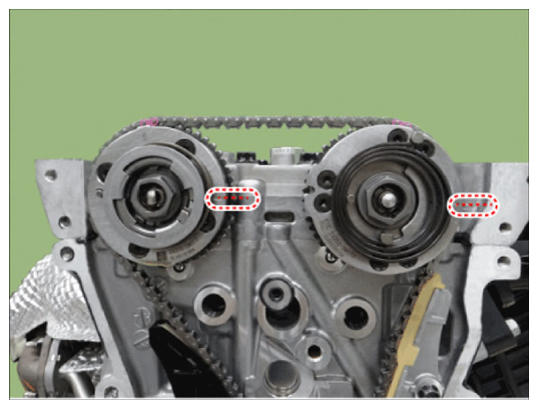

- When installing the timing chain, check that the TDC mark on the front of the intake and exhaust CVVT is positioned at 0°(pointing right).
Courtesy of HYUNDAI MOTOR AMERICA

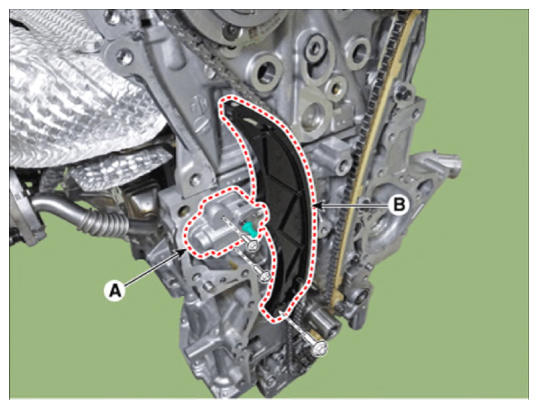

Install the timing chain tensioner (A) and timing chain tensioner arm (B).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Install the timing chain tensioner and remove the pin (B).
Courtesy of HYUNDAI MOTOR AMERICA

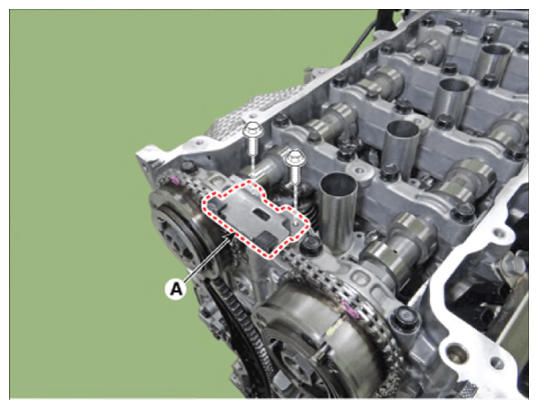

Install the cam to cam guide (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Check if the TDC mark at the front of intake and exhaust CVVT on right side 0° by turning crankshaft twice to clockwise.

Courtesy of HYUNDAI MOTOR AMERICA
Install the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")
Install the other parts in the reverse order of removal.
