Repair Procedures: Removal

1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
2. Remove the battery tray.

   (Refer to Engine Electrical System - "BATTERY ")

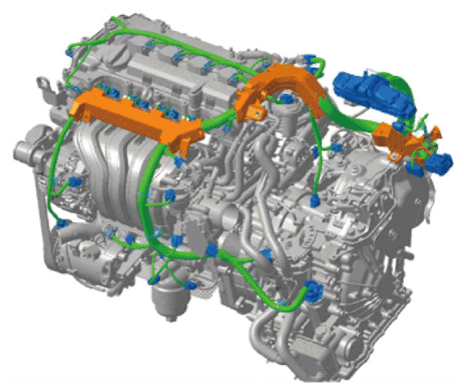

3. Disconnect the harness wiring & injector connector.

   Courtesy of HYUNDAI MOTOR AMERICA

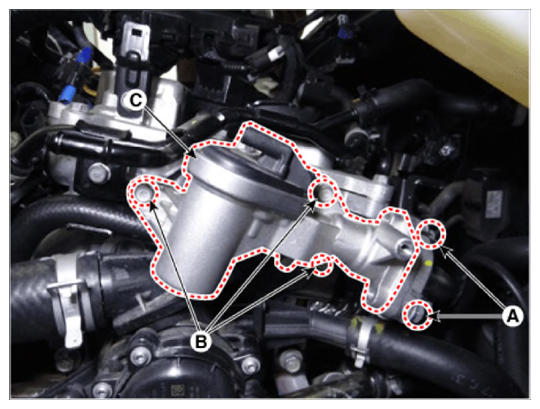

4. Remove the EEGR cooler pipe (A).
5. Remove the EEGR control valve (C) after removing the mounting bolts (B).

Electric EGR cooler pipe installation bolt:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)

Electric EGR control valve installation bolt:

12.7 - 14.7 N.m (1.3 - 1.5 kgf.m, 9.4 - 10.8 lb-ft)
