Home >> Hyundai >> 2021 >> Venue SE >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Fuel Tank Pressure Sensor (FTPS) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the rear seat.

    (Refer to Body - "REAR SEAT ")

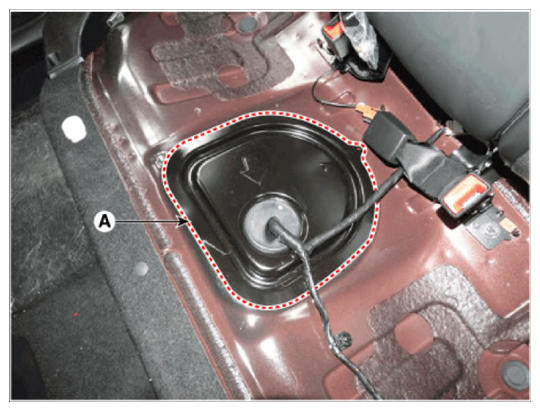

  3. Remove the fuel pump service cover (A).
    G14694473Courtesy of HYUNDAI MOTOR AMERICA

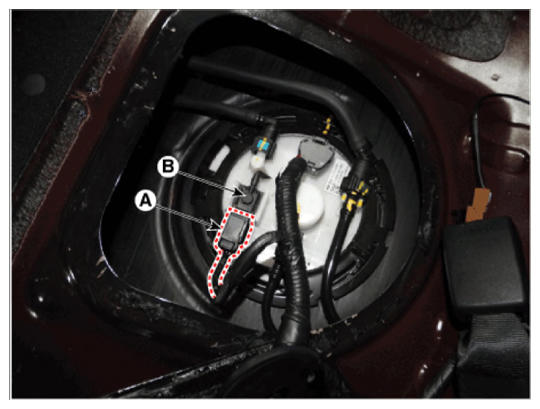

  4. Disconnect the fuel tank pressure sensor connector (A).
  5. Remove the fuel tank pressure sensor (B) after releasing the hooks vertically.
G14694474Courtesy of HYUNDAI MOTOR AMERICA
