Repair Procedures: Removal
- Turn the ignition switch OFF, and then remove battery (-) cable.
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

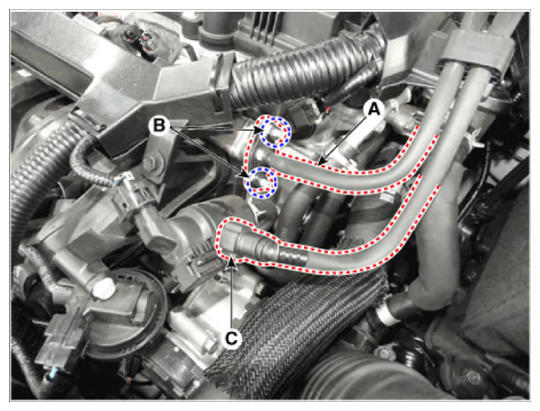

- Disconnect the fuel feed tube (A) after remove the nuts (B).
- Disconnect the vapor tube quick-connector (C) which is connected from the PCSV.
- Lift the vehicle.
- Remove the fuel tank.
(Refer to Fuel Delivery System - "FUEL TANK ")

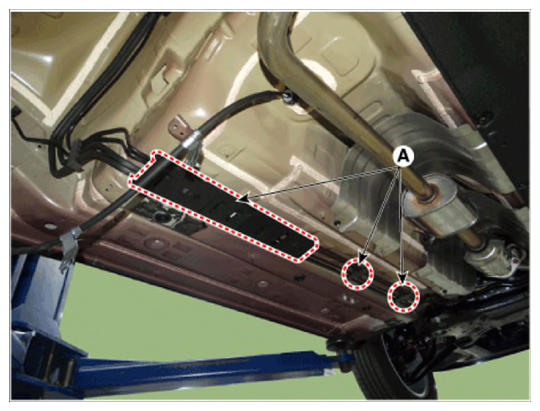

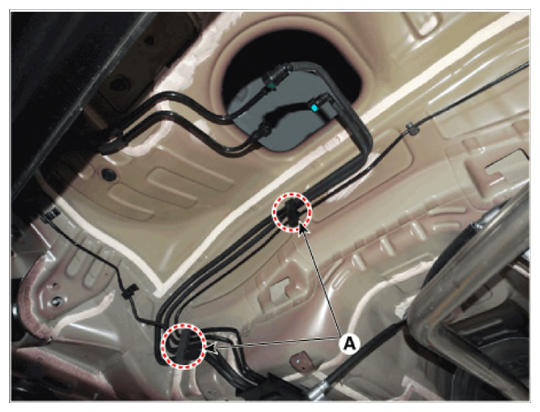

- Remove the vapor tube and fuel feed tube line fixing clips (A) by using a common driver.
