Smart Key Code Saving

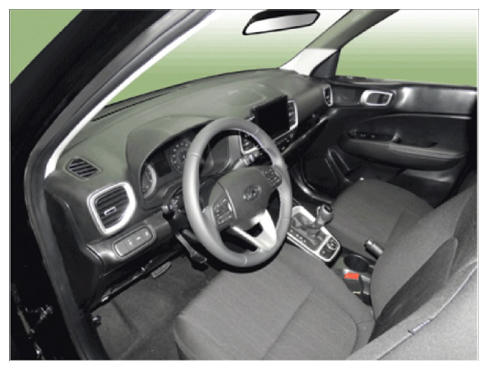

  1. Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.
    G14696027Courtesy of HYUNDAI MOTOR AMERICA

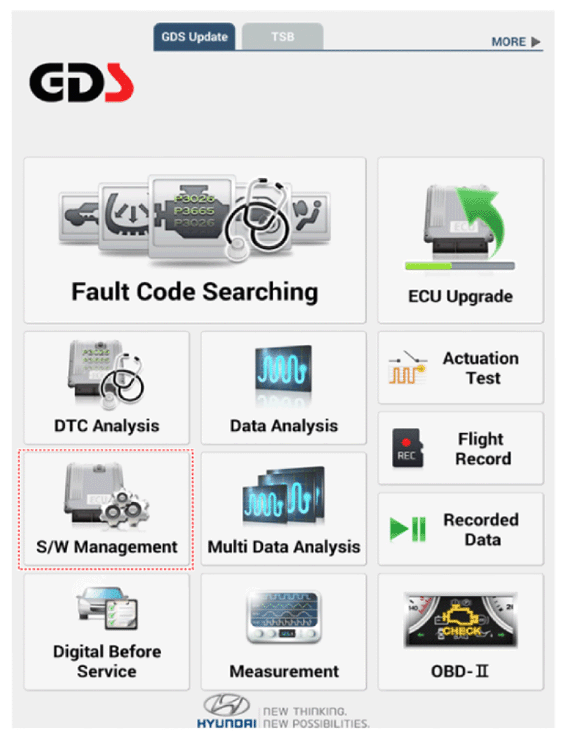

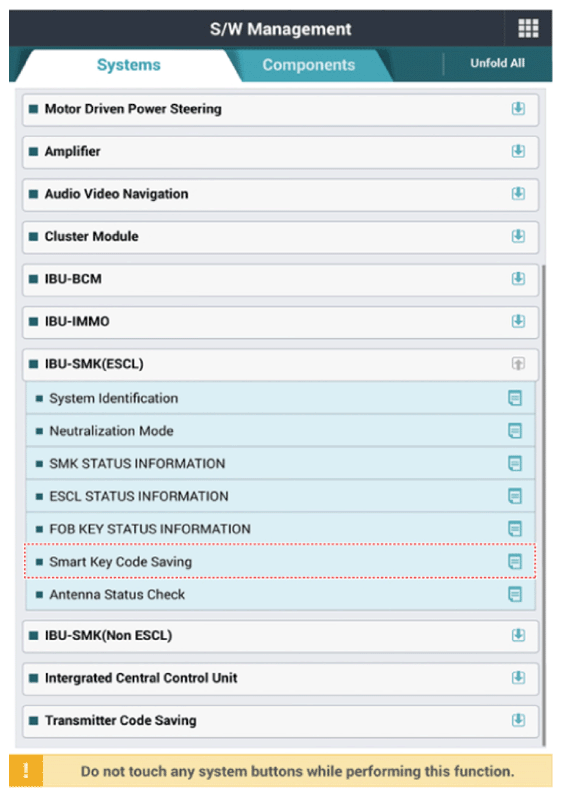

  2. Select the 'S/W Management' and 'Car model'.
    G14696028Courtesy of HYUNDAI MOTOR AMERICA
    G14696029Courtesy of HYUNDAI MOTOR AMERICA

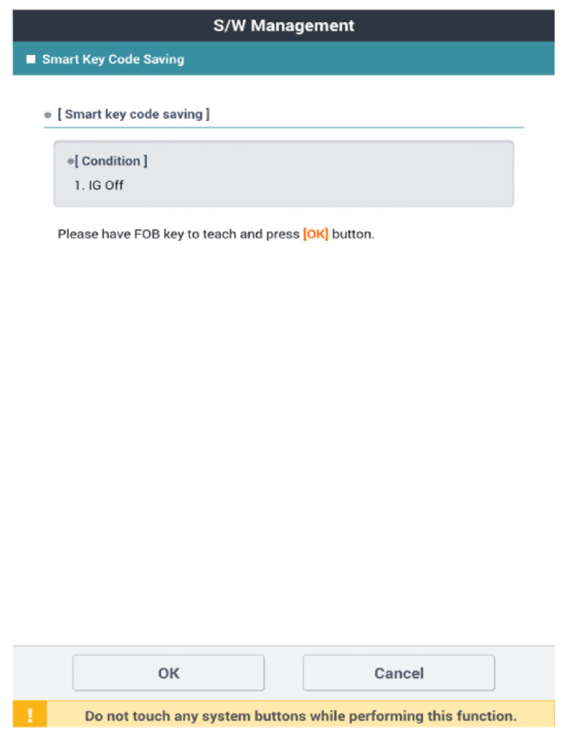

  3. Follow the instructions on the screen.
G14696030Courtesy of HYUNDAI MOTOR AMERICA
