Home >> Hyundai >> 2022 >> Elantra N Standard Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> CVVT Oil Control Valve (OCV) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.

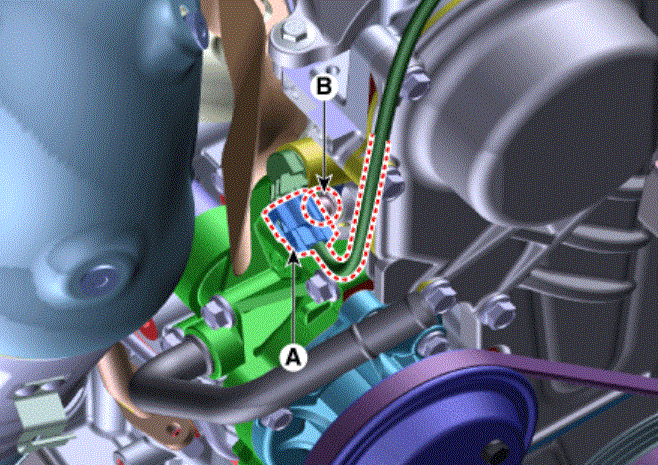

  2. Disconnect the CVVT oil control valve connector (A).
  3. Remove the installation bolt (B), and then remove the valve from the engine.
    G16176939Courtesy of HYUNDAI MOTOR AMERICA
