Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.
  2. Disconnect the fuel tank air filter

    (Refer to Emission Control System - "FUEL TANK AIR FILTER ")

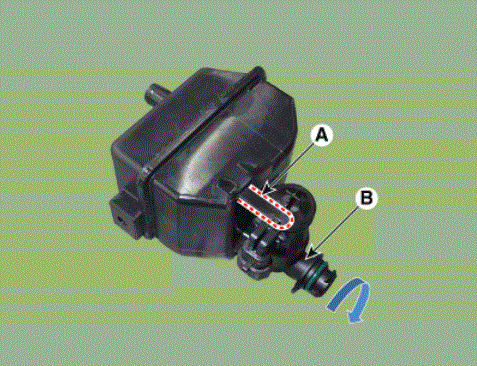

  3. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter after rotating in the direction of the arrow in the figure below.
    G16176986Courtesy of HYUNDAI MOTOR AMERICA
