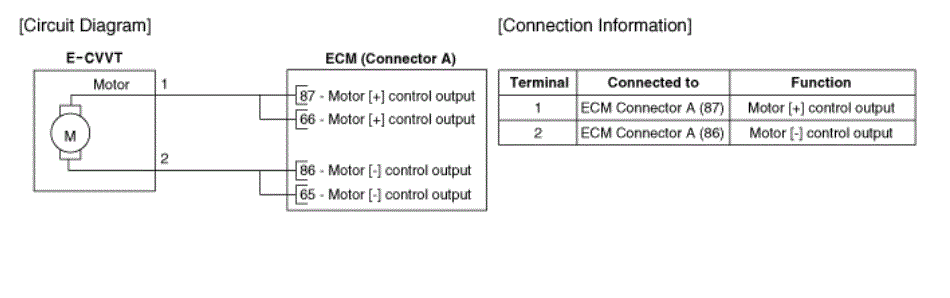

Home >> Hyundai >> 2022 >> Elantra N Standard Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> E-CVVT Motor >> Schematic Diagrams >> Schematic Diagram >> Notes
