EWAG Position Sensor

Position Output Voltage [V] Operating Angle [°] Range of Rod [mm], reference
Mechanical Close end stop Position (MCP) 4.8 0 0
Electrical Close end stop Position (ECP) 3.8 25.6 2.17
Electrical Open end stop Position (EOP) 1.2 92 15.42
Mechanical Open end stop Position (MOP) 0.5 110 19.22

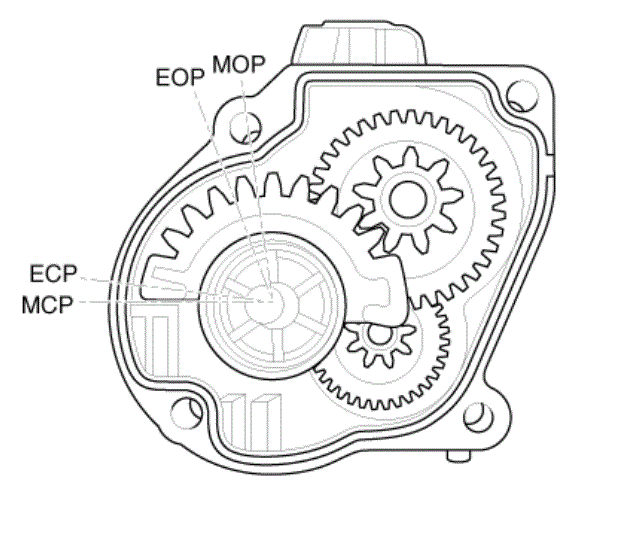

G16176961Courtesy of HYUNDAI MOTOR AMERICA

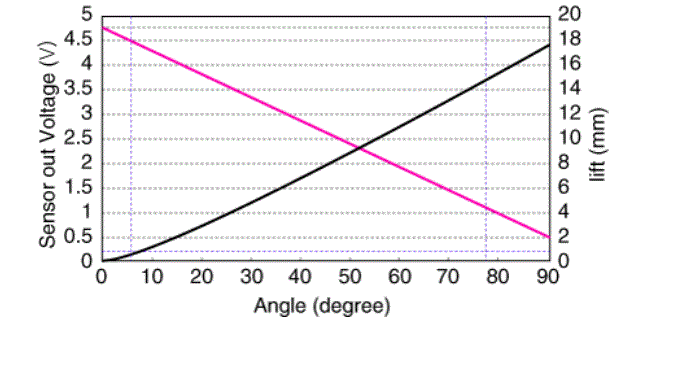

G16176962Courtesy of HYUNDAI MOTOR AMERICA
