Bank 1/Sensor 2

  1. Disconnect the battery (-) terminal.
  2. Disconnect the heated oxygen sensor connector (A), and then remove the clip (B).

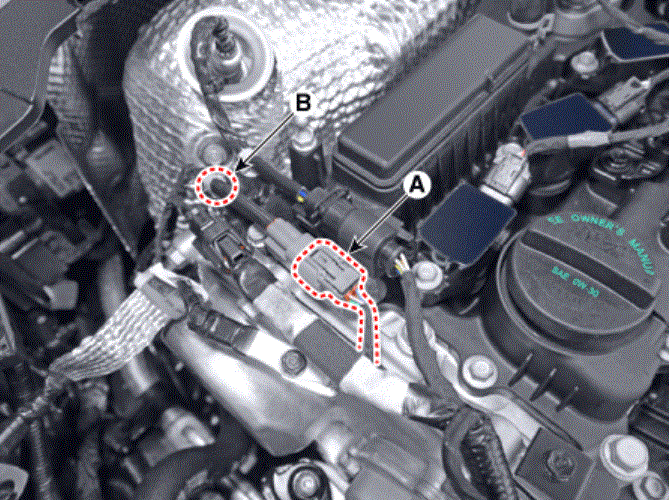

    G16176897Courtesy of HYUNDAI MOTOR AMERICA

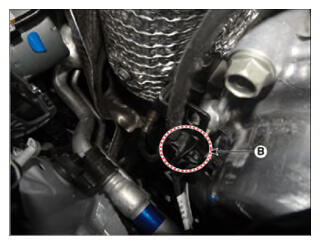

    G16176898Courtesy of HYUNDAI MOTOR AMERICA
  3. Lift the vehicle.
  4. Remove the heated oxygen sensor (A).

    Tightening Torque:

    39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.1 lb-ft)

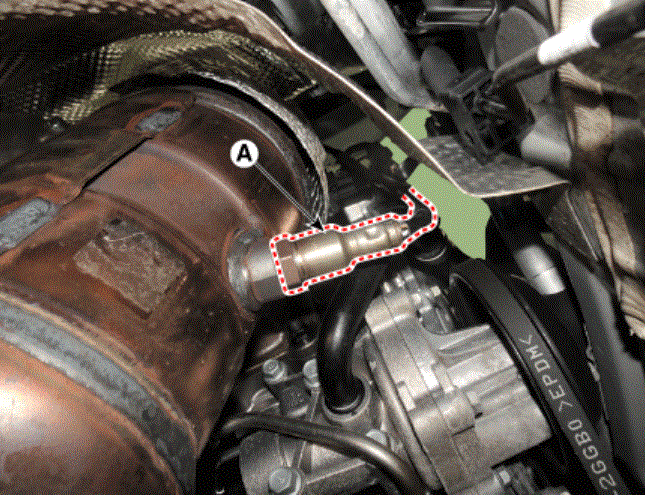

    G16176899Courtesy of HYUNDAI MOTOR AMERICA
