Home >> Hyundai >> 2022 >> Elantra N Standard Trans >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Manifold Absolute Pressure Sensor (MAPS) >> Specifications >> Specification

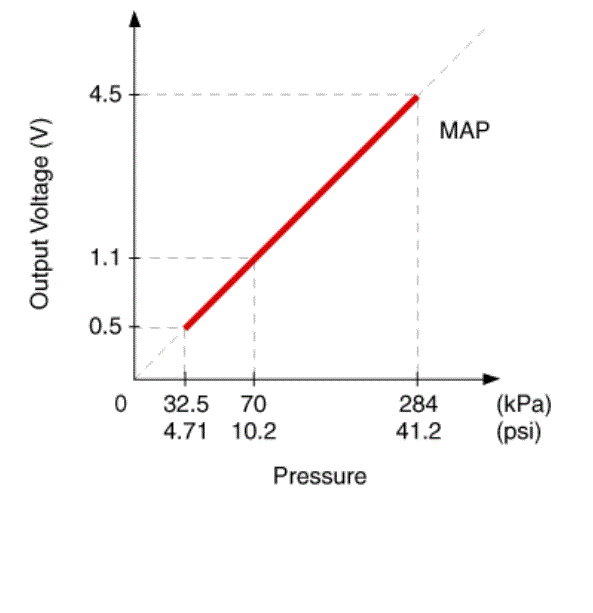

Manifold Absolute Pressure Sensor (MAPS): Specifications: Specification

Pressure [kPa (kgf/cm2 , psi)] Output Voltage (V)
32.5 (0.33, 4.71) 0.5
284 (2.89, 41.2) 4.5
G16176850Courtesy of HYUNDAI MOTOR AMERICA
