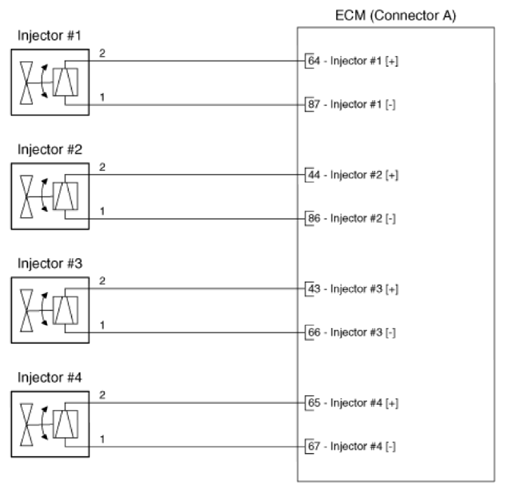

Home >> Hyundai >> 2022 >> Kona N Line, FWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 1.6L >> Injector >> Schematic Diagrams >> Circuit Diagram >> Notes
