Components & Components Location: Components

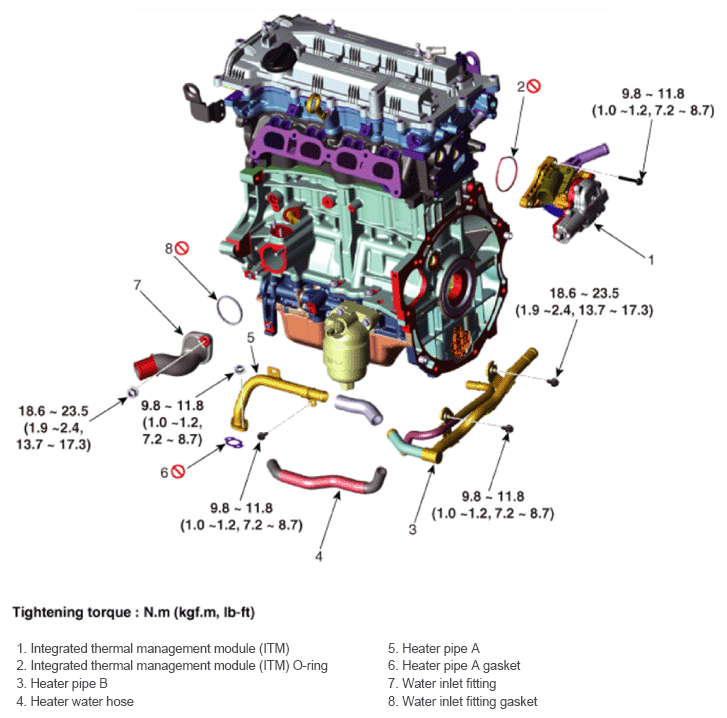

Fig 1: Integrated Thermal Management Module Components Location With Torque Specification

G14711123

Courtesy of HYUNDAI MOTOR AMERICA
