Home >> Hyundai >> 2022 >> Kona N >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Ambient Temperature Sensor (ATS) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.
  2. Remove the front bumper assembly

    (Refer to Body (Interior and Exterior) - "FRONT BUMPER ASSEMBLY ")

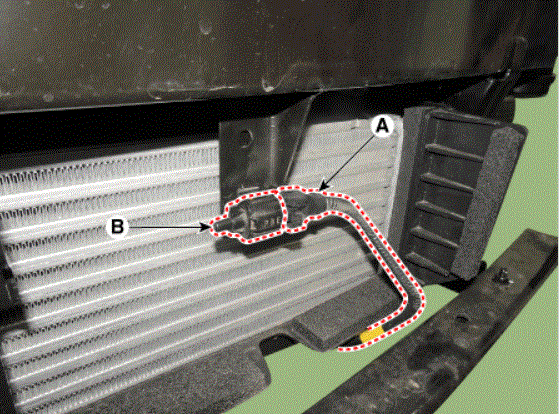

  3. Disconnect the connector (A), and then remove the ambient temperature sensor (B).
G16186125Courtesy of HYUNDAI MOTOR AMERICA
