Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.
  2. Remove the air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the battery.

    (Refer to Engine Electrical System - "BATTERY ")

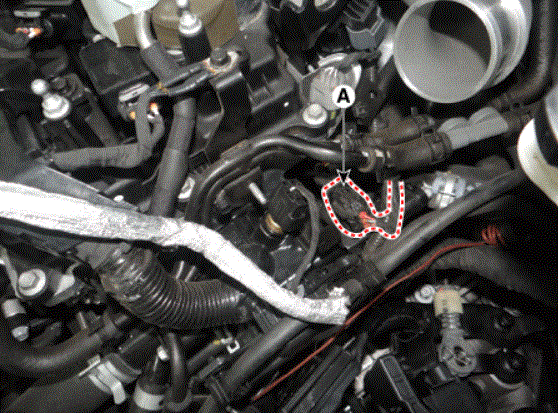

  4. Disconnect the crankshaft position sensor connector (A).
    G16186138Courtesy of HYUNDAI MOTOR AMERICA
  5. Lift the vehicle.
  6. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

  7. Remove the electric water pump.

    (Refer to Engine Mechanical System - "ELECTRIC WATER PUMP (EWP) ")

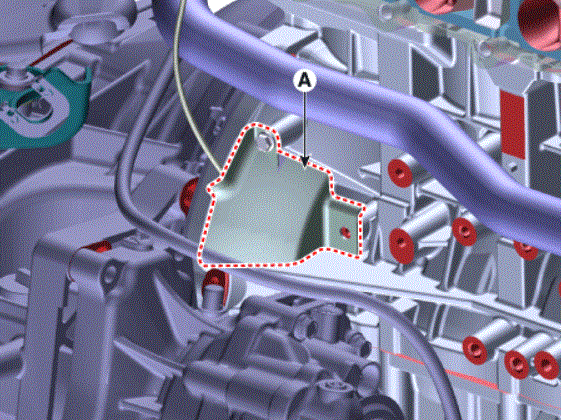

  8. Remove the protector (A) after loosening the mounting bolts.

    Crankshaft position sensor protector mounting bolt (M6):

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G16186139Courtesy of HYUNDAI MOTOR AMERICA

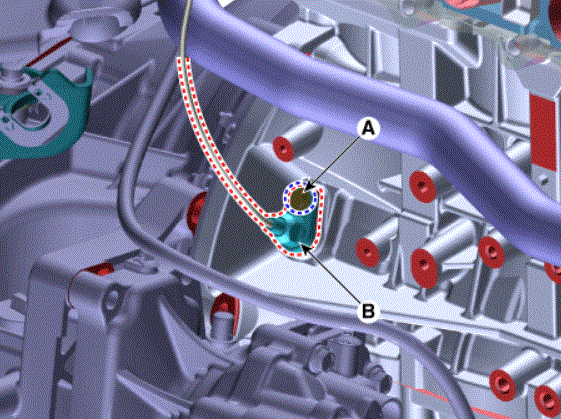

  9. Remove the crankshaft position sensor (B) after loosening the mounting bolt (A).

    Crankshaft position sensor mounting bolt:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G16186140Courtesy of HYUNDAI MOTOR AMERICA
