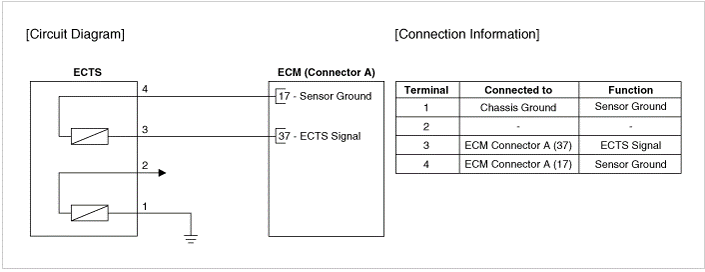

Home >> Hyundai >> 2022 >> Kona N >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Engine Coolant Temperature Sensor (ECTS) >> Schematic Diagrams >> Circuit Diagram >> Notes
