Home >> Hyundai >> 2022 >> Kona N >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Intake Air Temperature Sensor (IATS) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.
  2. Disconnect the MAPS & IATS connector (A).
  3. Remove the installation bolt (B), and then remove the sensor from the surge tank.

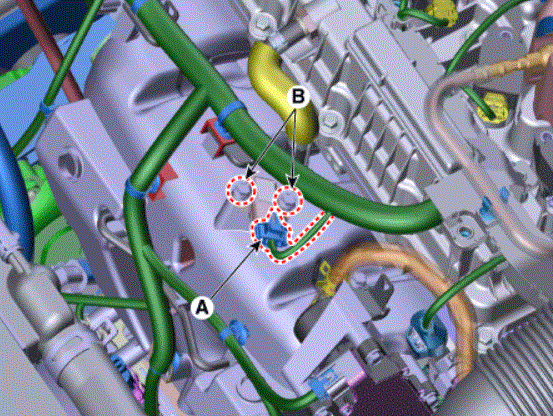

G16186121Courtesy of HYUNDAI MOTOR AMERICA
