Home >> Hyundai >> 2022 >> Kona N >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System >> Variable Charge Motion Actuator (VCMA) >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.
  2. Remove the air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Disconnect the variable charge motion actuator connector (A).
    G16186207Courtesy of HYUNDAI MOTOR AMERICA

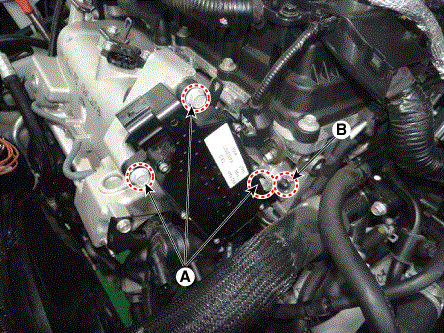

  4. Remove the variable charge motion actuator mounting bolts (A).
  5. Remove variable charge motion actuator rod mounting nut (B).
G16186208Courtesy of HYUNDAI MOTOR AMERICA
