Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.
  2. Remove the ignition coil.

    (Refer to Ignition System - "REPAIR PROCEDURES ")

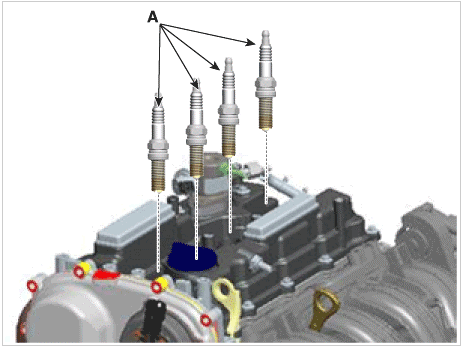

  3. Using a spark plug wrench, remove the spark plug (A).

    Tightening torque:

    14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.8 - 18.1 lb.ft)

G16185879Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
  • Be careful that no contaminates enter into spark plug holes.
