Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:
    • Do not reuse the used bolt.
    • Do not reuse the used injector fixing clip.
    • Do not reuse the high pressure fuel pipe.
    • Do not reuse the combustion seal (A).

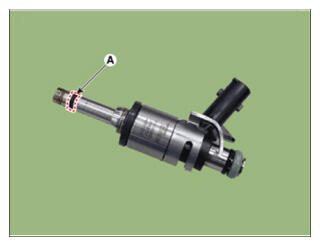

      G16120042Courtesy of HYUNDAI MOTOR AMERICA
    • Be careful not to apply oil to combustion seal.
    • Do not reuse the O-ring (A), support disk (B), rubber washer (C).

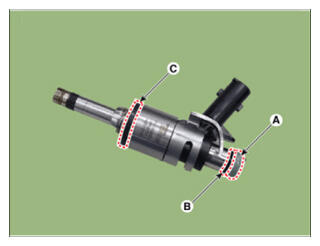

      G16120043Courtesy of HYUNDAI MOTOR AMERICA
    • When replacing the rubber washer, the steel plate part should be facing the cylinder installation part, and the rubber plate part should be facing the injector body part.
    • Apply the engine oil to the injector O-ring.
    • When inserting the injector, be careful not to damage the injector tip.
