Components & Components Location: Components

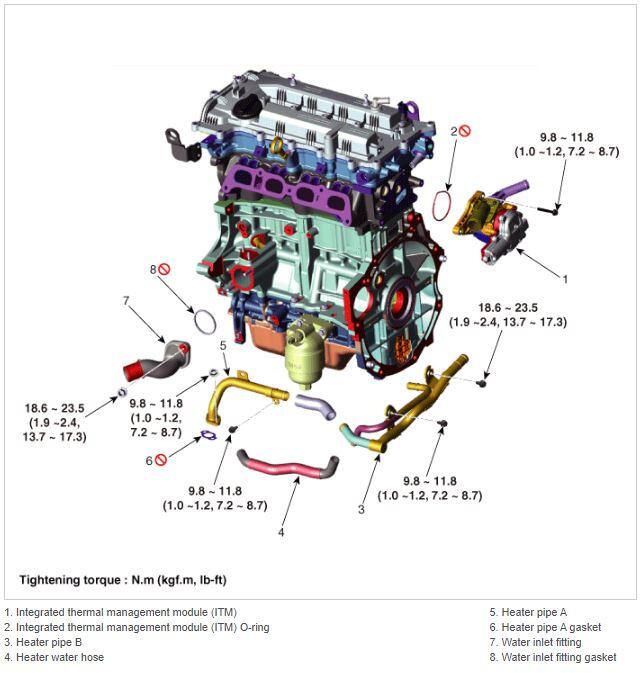

Fig 1: Thermal Management Module Motor Components Location With Torque Specifications

G16120100

Courtesy of HYUNDAI MOTOR AMERICA
