Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the intercooler outlet hose.

    (Refer to Engine Mechanical System - " INTERCOOLER  ")

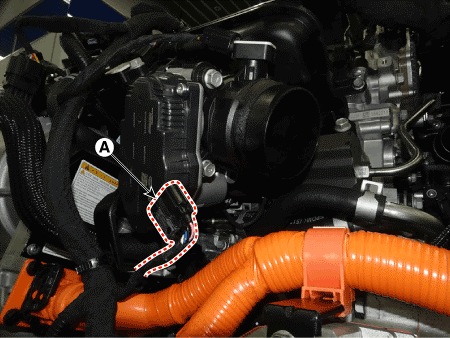

  3. Disconnect the ETC Module Connector (A).
    G16172449Courtesy of HYUNDAI MOTOR AMERICA

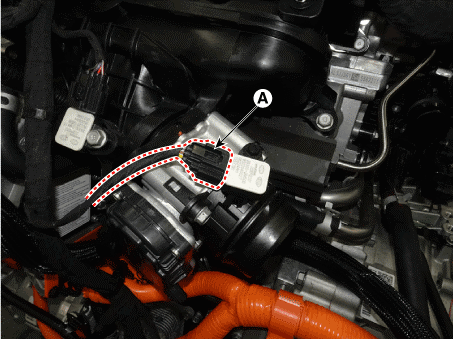

  4. Disconnect the BPS connector (A).
    G16172450Courtesy of HYUNDAI MOTOR AMERICA

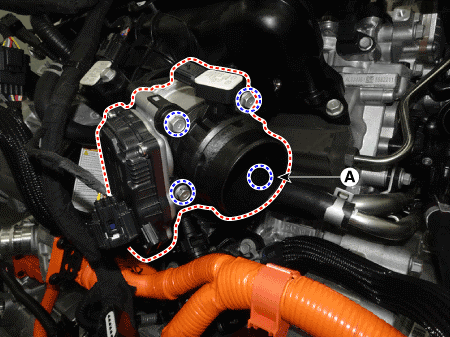

  5. Remove the ETC module (A) after loosening the mounting bolts.

    Tightening torque:

    9.8 - 11.8 N.m (1.0-1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G16172451Courtesy of HYUNDAI MOTOR AMERICA
