Fuel Tank Pressure Sensor (FTPS)
>>
Specifications
>>
Specification

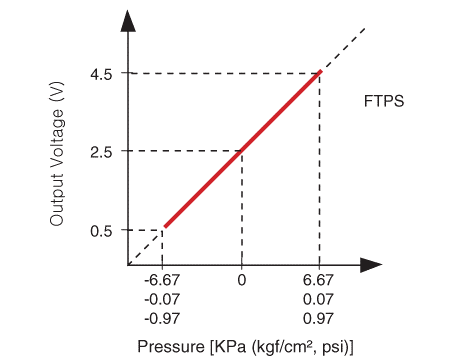

Fuel Tank Pressure Sensor (FTPS): Specifications: Specification
Pressure [kPa (kgf/cm
3
, in H2O)]
Output Voltage (V)
-6.67 (-0.068, - 26.8)
0.5
0
2.5
+6.67 (0.068, 26.8)
4.5
