Repair Procedures: Removal

  1. Remove the ignition coil.

    (Refer to Ignition System  - "IGNITION COIL REPAIR PROCEDURES ")

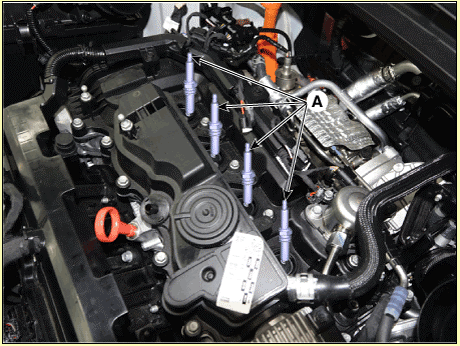

  2. Using a spark plug wrench, remove the spark plug (A).

    Tightening torque:

    14.7 - 24.5 N.m (1.5 - 2.5 kgf.m, 10.9 - 18.0 lb-ft)

    G16172249Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Be careful that no contaminants enter into spark plug holes.
