Repair Procedures: Inspection

  1. Using the diagnostic tool, check the input/output speed sensor waveforms.
    • Connect VCI data cable to self-diagnosis connector located at the bottom part of driver seat crash pad.
    • Start the engine and turn on VCI.
    • Select the name of vehicle type from diagnostic tool equipment screen.
    • Check the input/output speed sensor waveforms at high speed and low speed.

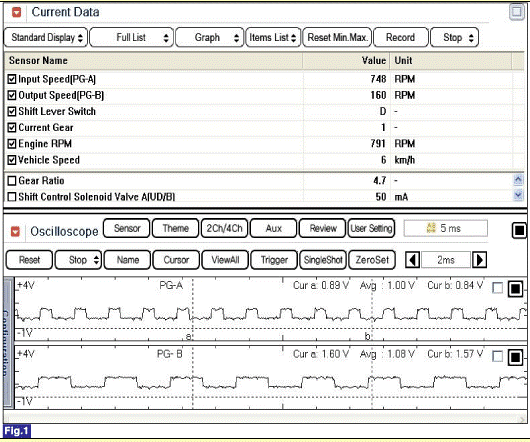

      G16173425Courtesy of HYUNDAI MOTOR AMERICA

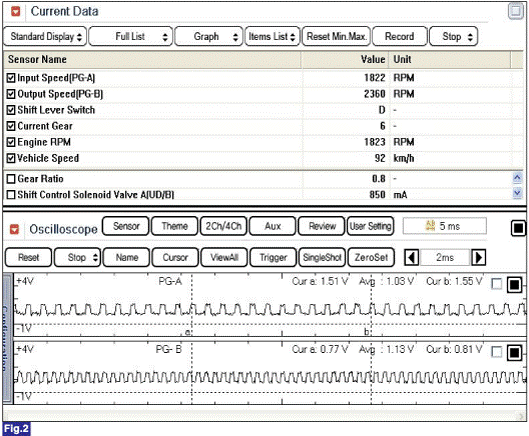

      G16173426Courtesy of HYUNDAI MOTOR AMERICA
