Repair Procedures: Adjustment

NOTE:
  • Perform the following procedure when replacing ECM (New parts/Reused parts).
  • ECM and TCM are integrated, TCM related procedures should be performed when the ECM is replaced.
  1. Perform the neutral mode using the diagnosis tool when replacing with a reused ECM.

    [Non-Smart Key]

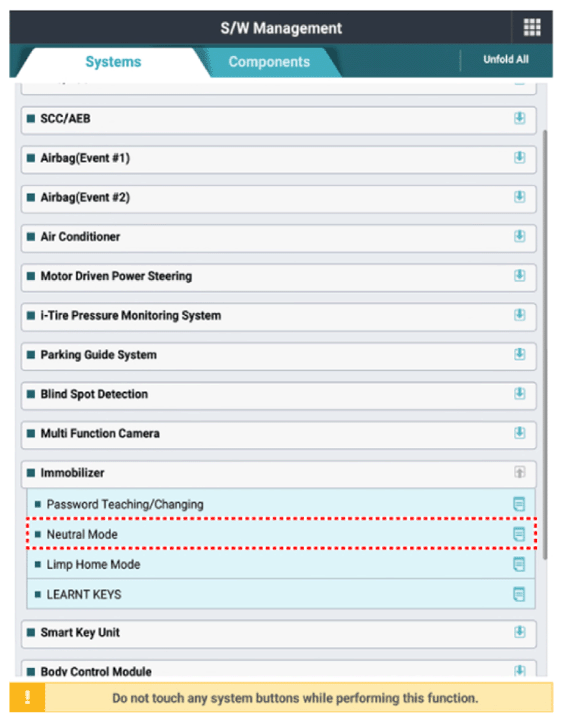

    G14676789Courtesy of HYUNDAI MOTOR AMERICA

    [Smart Key]

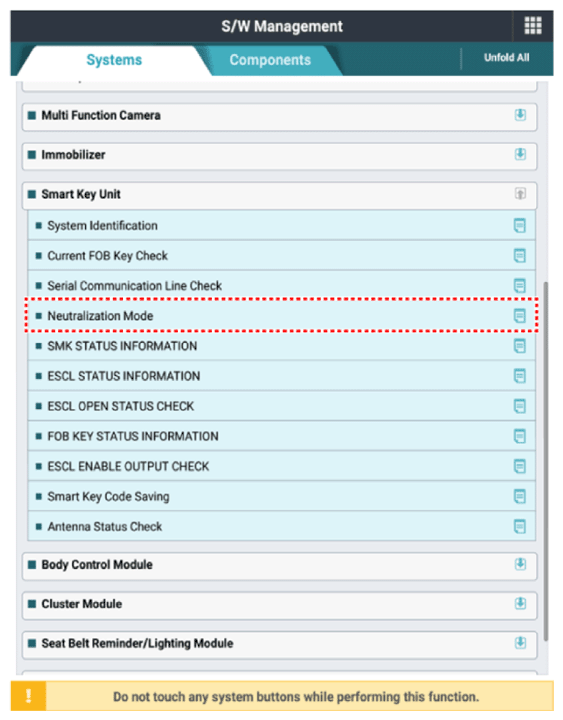

    G14676790Courtesy of HYUNDAI MOTOR AMERICA
  2. Perform the "KEY TEACHING " procedure by using the diagnosis tool.

    [Non-Smart Key]

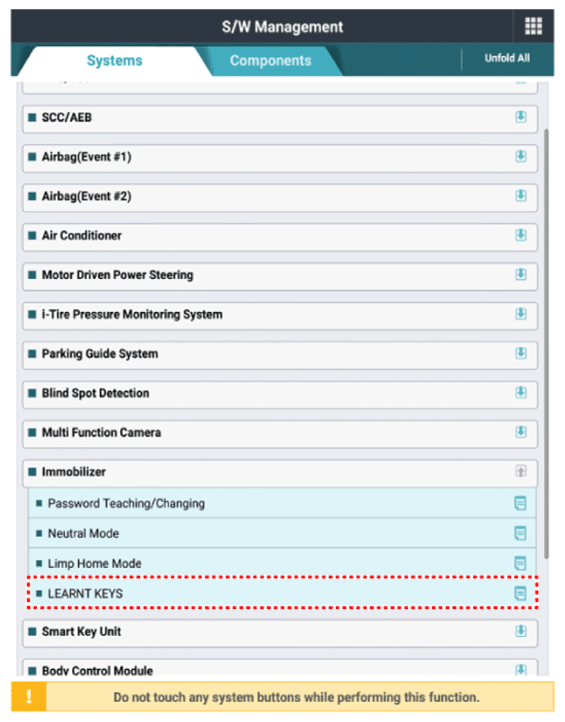

    G14676791Courtesy of HYUNDAI MOTOR AMERICA

    [Smart Key]

    Turn the ignition switch ON then OFF using the smart key or start button. Then the ECM learns information on the smart key automatically.

  3. Perform the VIN writing procedure by using the diagnosis tool.

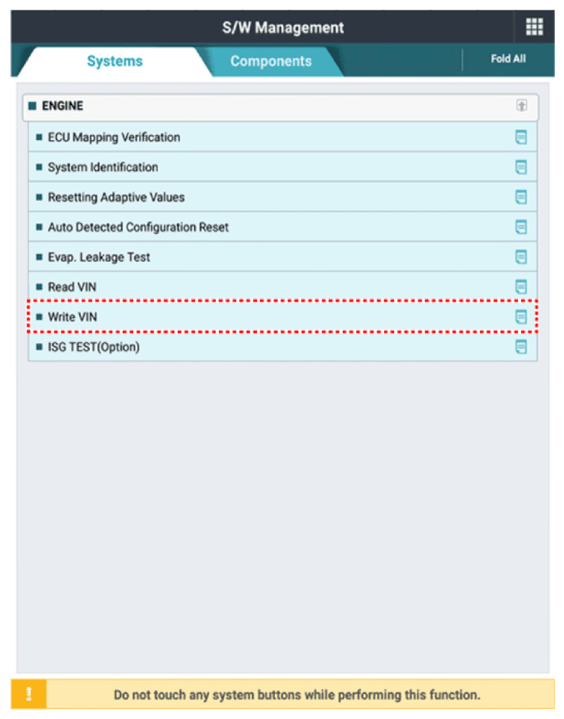

    G14676792Courtesy of HYUNDAI MOTOR AMERICA

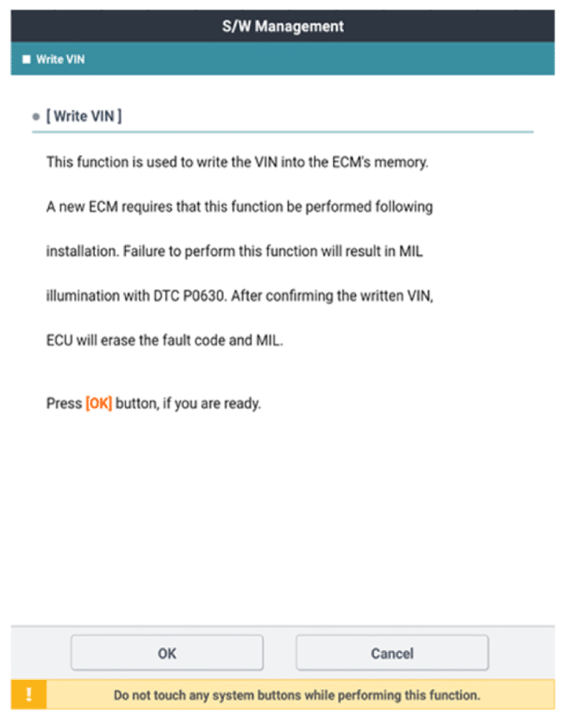

    G14676793Courtesy of HYUNDAI MOTOR AMERICA
  4. Perform the oil pressure characteristics backup procedure using the diagnosis tool.

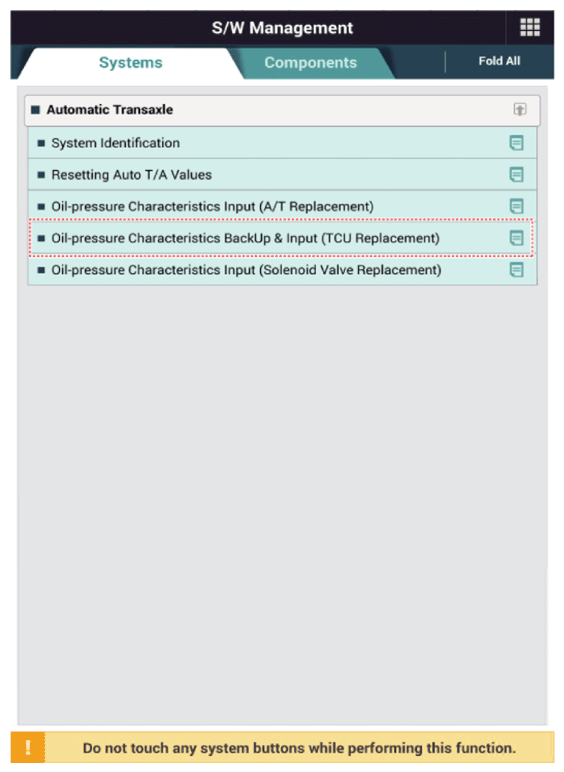

    G14676794Courtesy of HYUNDAI MOTOR AMERICA
  5. Perform the ETC module learning procedure.

    (Refer to ETC (ELECTRONIC THROTTLE CONTROL) SYSTEM  Engine Control/Fuel System - "ETC System")

  6. Perform the TCM learning procedure.

    (Refer to Automatic Transaxle Control System - "REPAIR PROCEDURES ")
