Bank 1/Intake

  1. Disconnect the battery (-) terminal.
  2. Remove the air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER REPAIR PROCEDURES ")

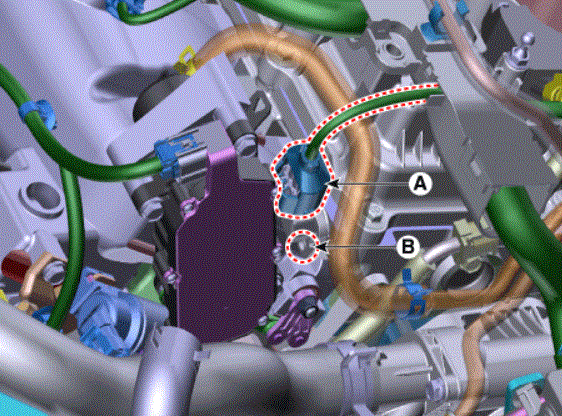

  3. Disconnect the camshaft position sensor connector (A).
  4. Remove the installation bolt (B), and then remove the sensor.
G16186147Courtesy of HYUNDAI MOTOR AMERICA
