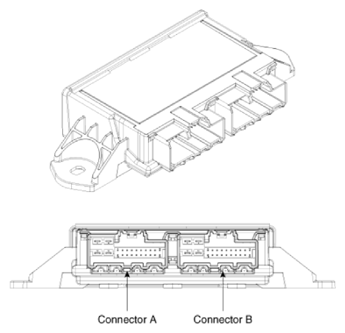

Components & Components Location: Components
| Connector A | Pin NO | Function |
|---|---|---|
| 1 | Spindle motor LH (+) | |
| 2 | Spindle motor LH (-) | |
| 3 | - | |
| 4 | System power ground | |
| 5 | Spindle hall sensor power RH | |
| 6 | Spindle hall sensor1 RH | |
| 7 | Spindle hall sensor2 RH | |
| 8 | Spindle hall sensor ground RH | |
| 9 | - | |
| 10 | Spindle hall sensor power LH | |
| 11 | Spindle hall sensor1 LH | |
| 12 | Spindle hall sensor2 LH | |
| 13 | Spindle motor RH (+) | |
| 14 | Spindle motor RH (-) | |
| 15 | Spindle shield RH | |
| 16 | Spindle shield LH | |
| 17 | - | |
| 18 | - | |
| 19 | - | |
| 20 | - | |
| 21 | - | |
| 22 | - | |
| 23 | Spindle hall sensor ground LH | |
| 24 | System power |
| Connector B | Pin NO | Function |
|---|---|---|
| 1 | Motor power ground | |
| 2 | PCU motor (-) | |
| 3 | HS-CAN (High) | |
| 4 | HS-CAN (Low) | |
| 5 | - | |
| 6 | APS RH | |
| 7 | APS LH | |
| 8 | Full open switch | |
| 9 | Half close switch | |
| 10 | Full close switch | |
| 11 | - | |
| 12 | - | |
| 13 | Motor power | |
| 14 | PCU motor CW (+) | |
| 15 | Home position switch ground | |
| 16 | Tailgate side switch | |
| 17 | Tailgate inner switch | |
| 18 | APS ground RH | |
| 19 | Buzzer | |
| 20 | N gear position | |
| 21 | Tailgate inner switch ill | |
| 22 | Home position switch | |
| 23 | APS ground LH | |
| 24 | Switch ground |
