Repair Procedures: Removal
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

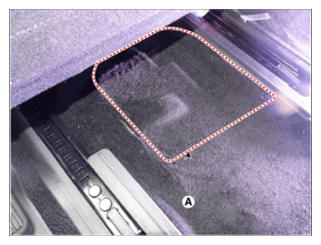

- Remove the floor carpet service cover (A).

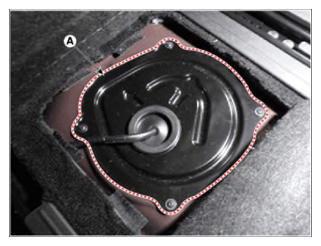

- Remove the fuel pump service cover (A) after loosening the mounting screws.

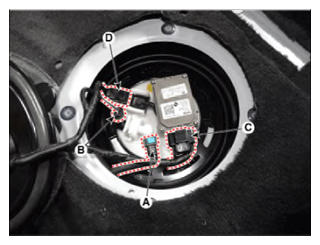

- Disconnect the fuel feed tube quick-connector (A) and fuel pressure sensor connector (B) and fuel pump control module (C).
- Disconnect the fuel tank pressure sensor connector (D).

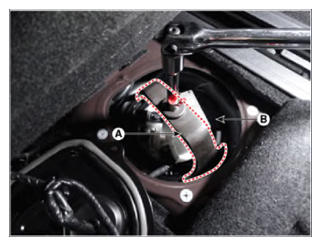

- Remove the locking ring (A) by using the special service tool [No.: 09310-B8100].NOTE:
- When removing the plate cover, be careful not to damage the fuel tank and fuel pump.
- When removing the plate cover, press the upper area with hand and rotate the wrench counter clockwise.
- Remove the fuel pump from the fuel tank.
