Home >> Hyundai >> 2023 >> Palisade Calligraphy, FWD >> Repair and Diagnosis >> Body & Frame >> Windows >> Power Windows >> Power Window Motor >> Components & Components Location >> Components

Components & Components Location: Components

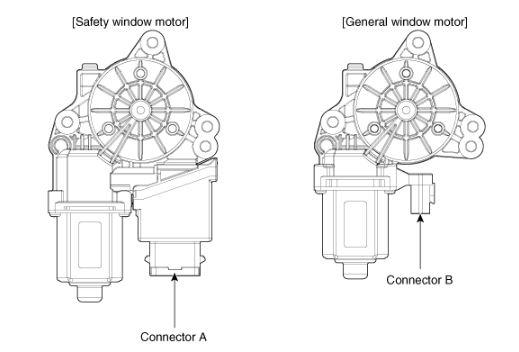

G14932766Courtesy of HYUNDAI MOTOR AMERICA
G14932767Courtesy of HYUNDAI MOTOR AMERICA
Pill Description
1 Switch 1
2 Enable
3 Battery +
4 Ground
S LIN
6 Switch 2
G14932768Courtesy of HYUNDAI MOTOR AMERICA
Pin Description
1 Battery +
2 Ground
