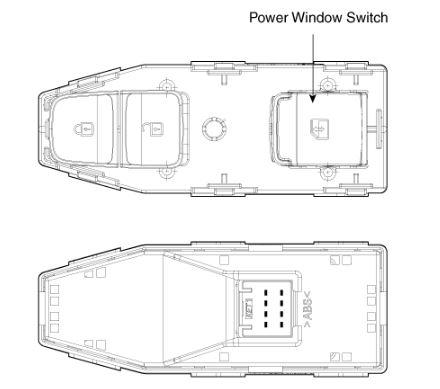

Assist Power Window Switch

G14932769Courtesy of HYUNDAI MOTOR AMERICA
Connector A No Description
G14932770Courtesy of HYUNDAI MOTOR AMERICA
 1 Tail Lamp (-)_GND
2 Door Unlock Switch
3 Door Lock Swtich
4 Tail Lamp (+)_Power
5 GND
6 -
7 Safety Power Window
8 -
