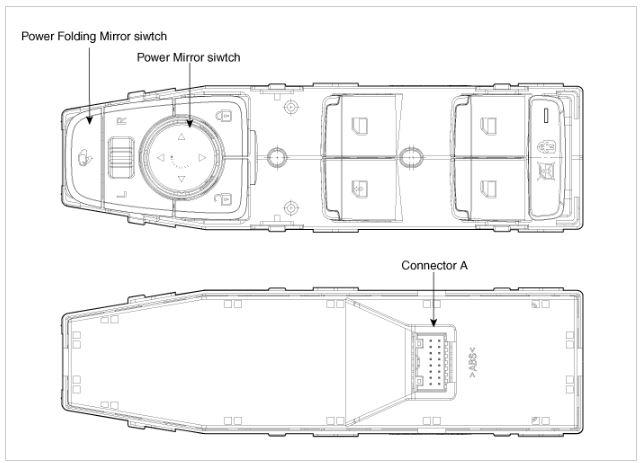

Driver Power Window Switch
| Connector A | Pin | IMS | Non-IMS |
|---|---|---|---|
| Function | |||
| 1 | - | - | |
| 2 | B_CAN (Low) | B_CAN (Low) | |
| 3 | B_CAN (High) | B_CAN (High) | |
| 4 | - | - | |
| 5 | LIN | - | |
| 6 | - | - | |
| 7 | - | - | |
| 8 | Battery (+) | Battery (+) | |
| 9 | Ground | Ground | |
| 10 | - | Mirror Folding Motor | |
| 11 | - | Mirror Unfolding Motor | |
| 12 | IMS Switch | - | |
| 13 | - | Mirror Adjust Motor (Horizontal) | |
| 14 | - | Mirror Adjust Motor (Vertical) | |
| 15 | Drive Safety Window | Drive Safety Window | |
| 16 | IGN1 | IGN1 | |
