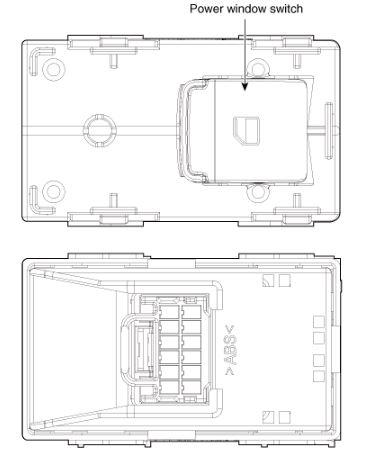

Rear Power Window Switch

G14932771Courtesy of HYUNDAI MOTOR AMERICA
Connector A Pin Description
G14932772Courtesy of HYUNDAI MOTOR AMERICA
 1 Ground_Illumination (-)
2 -
3 -
4 Battery (+) Illumination (+)
5 Ground
6 -
7 Safety power window
8 -
