Repair Procedures: Removal
- Disconnect the battery (-) terminal.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery tray.
(Refer to Engine Electrical System - "BATTERY ")

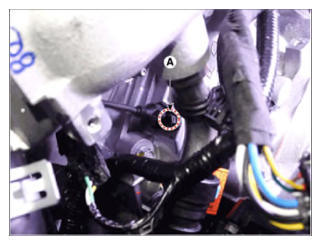

- Disconnect the crankshaft position sensor connector.
- Remove the mounting bolt (B), and then vertically remove the sensor from the transaxle housing.
Tightening torque:
6.8 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.0 - 7.2 lb-ft)
