Home >> Hyundai >> 2023 >> Palisade Calligraphy, FWD >> Repair and Diagnosis >> Engine Performance >> Tune-Up >> Ignition System >> Spark Plug >> Repair Procedures >> Removal

Repair Procedures: Removal

NOTE:
  • When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
    G15476934Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
  • Be careful that no contaminant enters into spark plug holes.

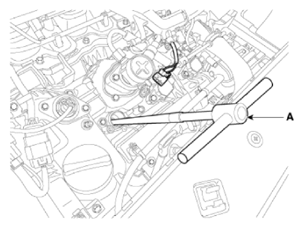

  • Use the spark plug wrench (A) to prevent the damage on the spark plug.
    G15476935Courtesy of HYUNDAI MOTOR AMERICA

Ignition coil (Cylinder #1) [Bank 1]

  1. Remove the surge tank.

    (Refer to Engine Mechanical System - "SURGE TANK ")

  2. Remove the strap (A).
  3. Disconnect the Ignition coil connector (B).
  4. Remove the ignition coil after loosening the mounting bolt (C).
    G15476936Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the spark plug.

Ignition coil (Cylinder #2) [Bank 2]

  1. Disconnect the battery (-) terminal.
  2. Disconnect the Ignition coil connector (A).
  3. Remove the ignition coil after loosening the mounting bolt (B).
    G15476937Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the spark plug.

Ignition coil (Cylinder #3) [Bank 1]

  1. Remove the surge tank.

    (Refer to Engine Mechanical System - "SURGE TANK ")

  2. Remove the strap (A).
  3. Disconnect the Ignition coil connector (B).
  4. Remove the ignition coil after loosening the mounting bolt (C).
    G15476938Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the spark plug.

Ignition coil (Cylinder #4) [Bank 2]

  1. Disconnect the battery (-) terminal.
  2. Disconnect the Ignition coil connector (A).
  3. Remove the ignition coil after loosening the mounting bolt (B).
    G15476939Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the spark plug.

Ignition coil (Cylinder #5) [Bank 1]

  1. Remove the surge tank.

    (Refer to Engine Mechanical System - "SURGE TANK ")

  2. Remove the strap (A).
  3. Disconnect the Ignition coil connector (B).
  4. Remove the ignition coil after loosening the mounting bolt (C).
    G15476940Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the spark plug.

Ignition coil (Cylinder #6) [Bank 2]

  1. Disconnect the battery (-) terminal.
  2. Disconnect the Ignition coil connector (A).
  3. Remove the ignition coil after loosening the mounting bolt (B).
    G15476941Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the spark plug.
