Components and Components Location: Component

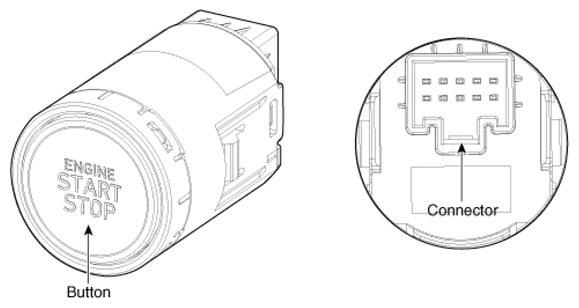

G16781248Courtesy of HYUNDAI MOTOR AMERICA
Connector Pin no Description
G16781249Courtesy of HYUNDAI MOTOR AMERICA
 1 SSB switch 1
2 -
3 SSB illumination (+)
4 Immobilizer power
5 -
6 Ground
7 SSB switch 1
8 SSB illumination (-)
9 -
10 Immobilizer ground
