Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.
  2. Remove the air cleaner.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  3. Remove the PCSV.

    (Refer to Engine Control/Fuel System - "PURGE CONTROL SOLENOID VALVE (PCSV) ")

  4. Remove the high pressure fuel pipe.

    (Refer to Engine Control/Fuel System - "HIGH PRESSURE FUEL PIPE ")

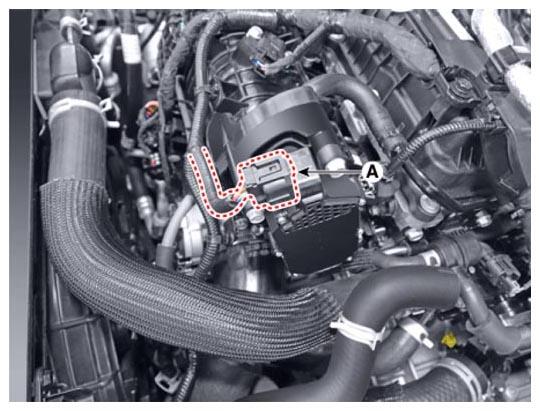

  5. Disconnect the variable charge motion actuator connector (A).
    G16772110Courtesy of HYUNDAI MOTOR AMERICA

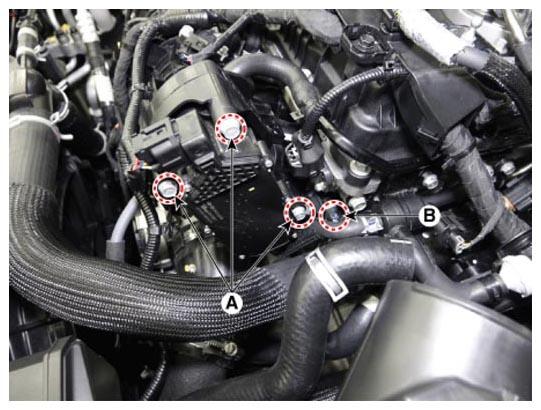

  6. Remove the variable charge motion actuator mounting bolts (A).
  7. move variable charge motion actuator rod mounting nut (B).
G16772111Courtesy of HYUNDAI MOTOR AMERICA
