Home >> Hyundai >> 2024 >> Elantra N Standard Trans >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Charging System >> Battery Sensor >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.

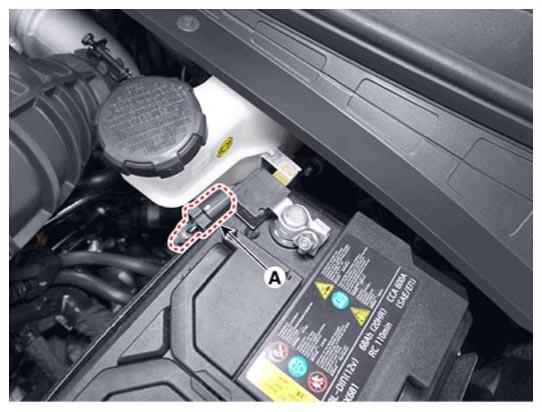

  2. Disconnect the battery sensor connector (A).
    G16771900Courtesy of HYUNDAI MOTOR AMERICA

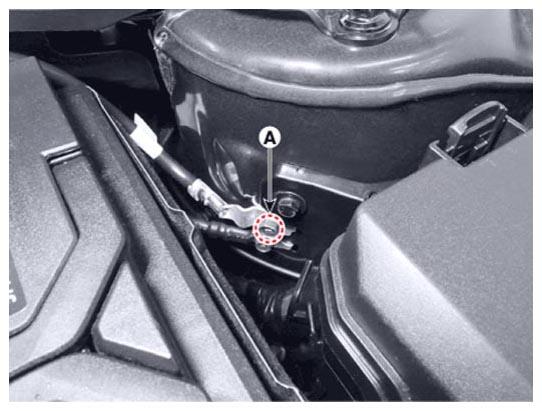

  3. After loosening the battery sensor cable mounting bolt (A), and remove the battery sensor cable.
G16771901Courtesy of HYUNDAI MOTOR AMERICA
