Repair Procedures: Inspection

  1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.

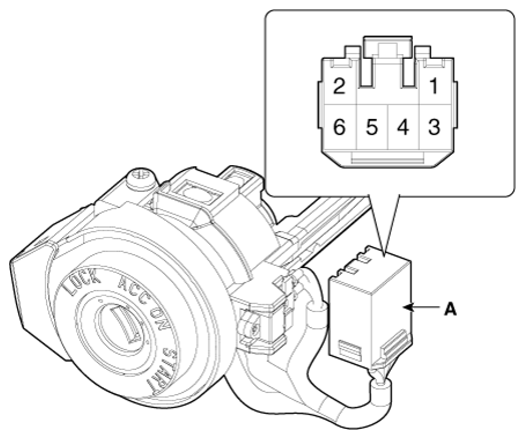

    G16781276Courtesy of HYUNDAI MOTOR AMERICA

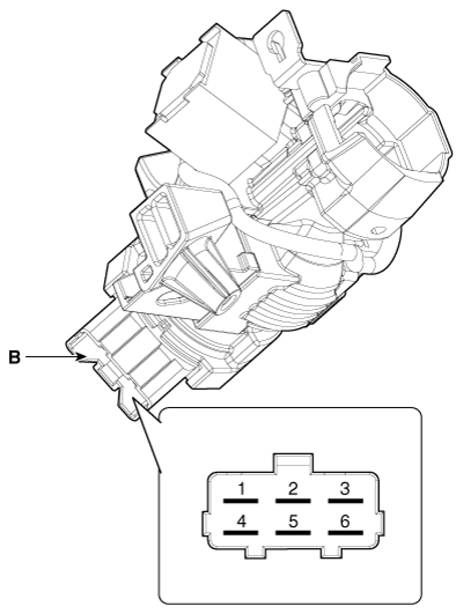

    G16781277Courtesy of HYUNDAI MOTOR AMERICA
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

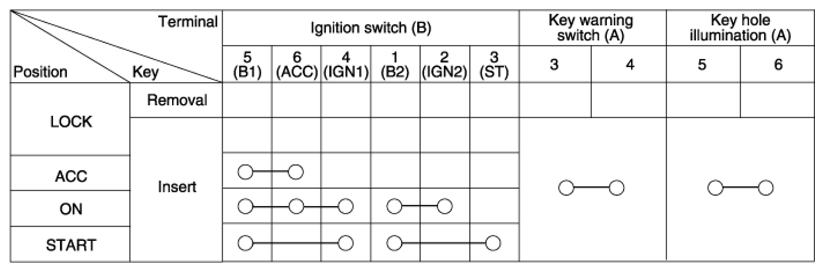

G16781278Courtesy of HYUNDAI MOTOR AMERICA
