Wheel Alignment: Tires/Wheels/Alignment: Alignment: Adjustment: Front
Toe
Toe
Total: 0.1° ± 0.2°
Individual: 0.05° ±0.1°

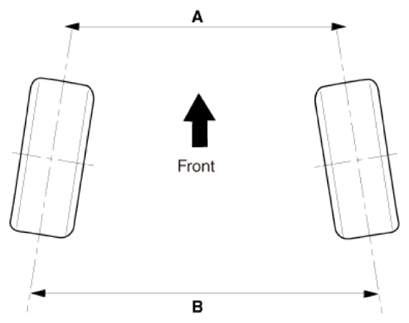

| Item | Description |
|---|---|
| A - B < 0 | Positive (+) toe (toe in) |
| A - B > 0 | Negative (-) toe (toe out) |

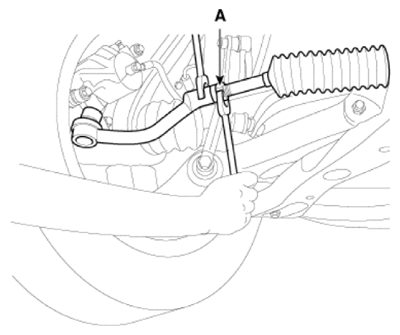

Tightening torque:
49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb.ft)
Camber
Camber refers to the tilt of the center of the wheel.
Camber angle: - 0.5° ± 0.5°

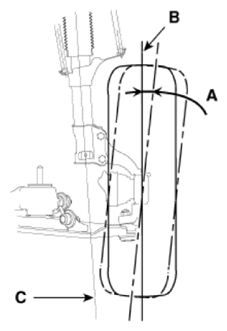

| Item | Description |
|---|---|
| A | Positive camber angle |
| B | True vertical |
| C | Strut centerline |

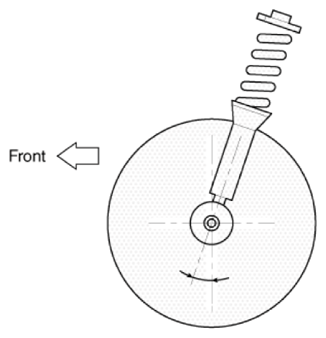

Caster
Caster is pre - set at the factory and doesn't need to be adjusted. If the caster is not within the standard value, replace the bent or damaged parts.
Caster: 4.26° ± 0.5°
