Home >> Hyundai >> 2024 >> Tucson Plug-In Hybrid Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (PHEV) >> Components & Components Location >> Components Location

Components Location

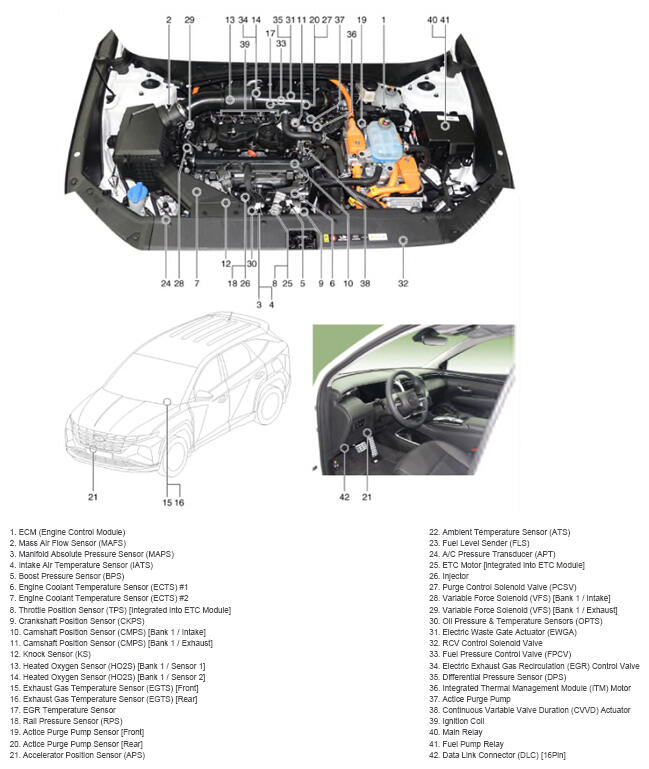

G16172426Courtesy of HYUNDAI MOTOR AMERICA

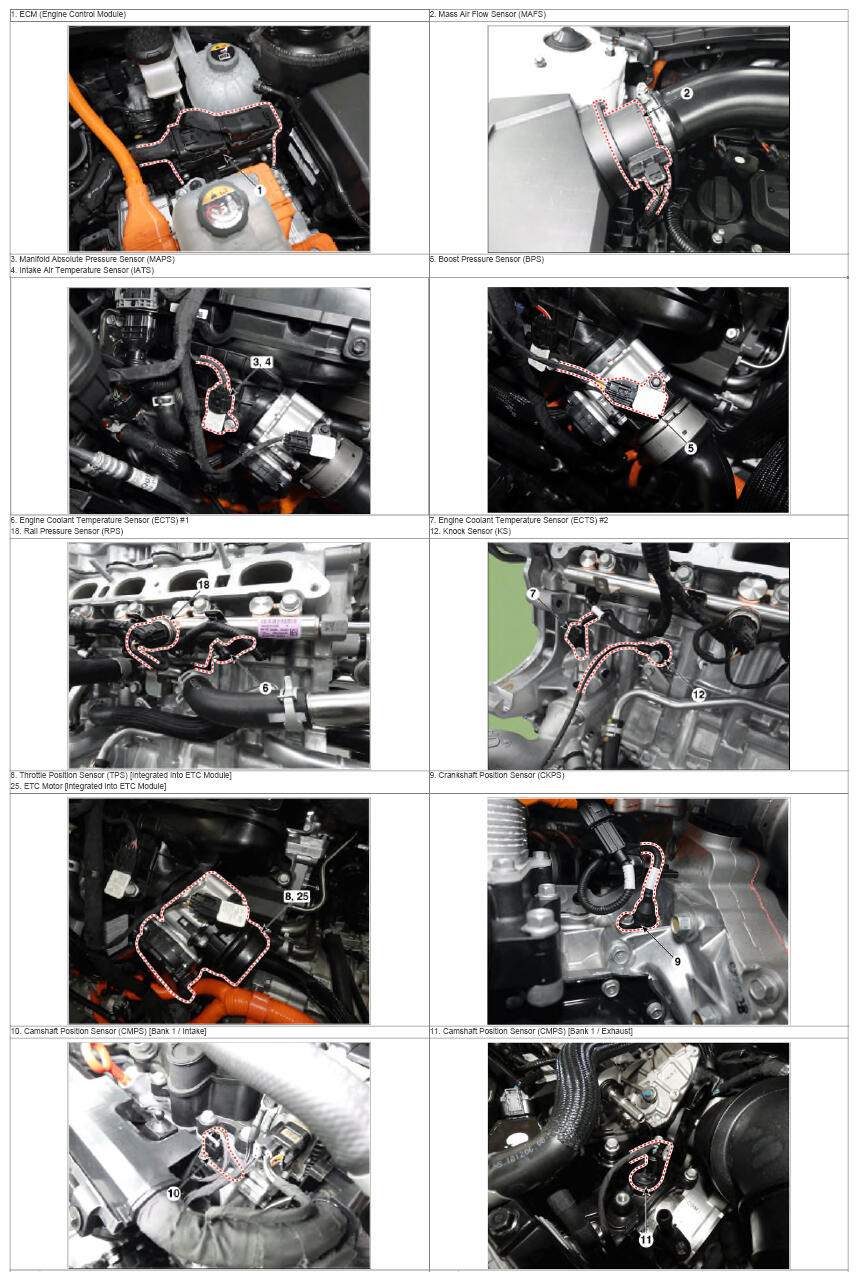

G16172427Courtesy of HYUNDAI MOTOR AMERICA

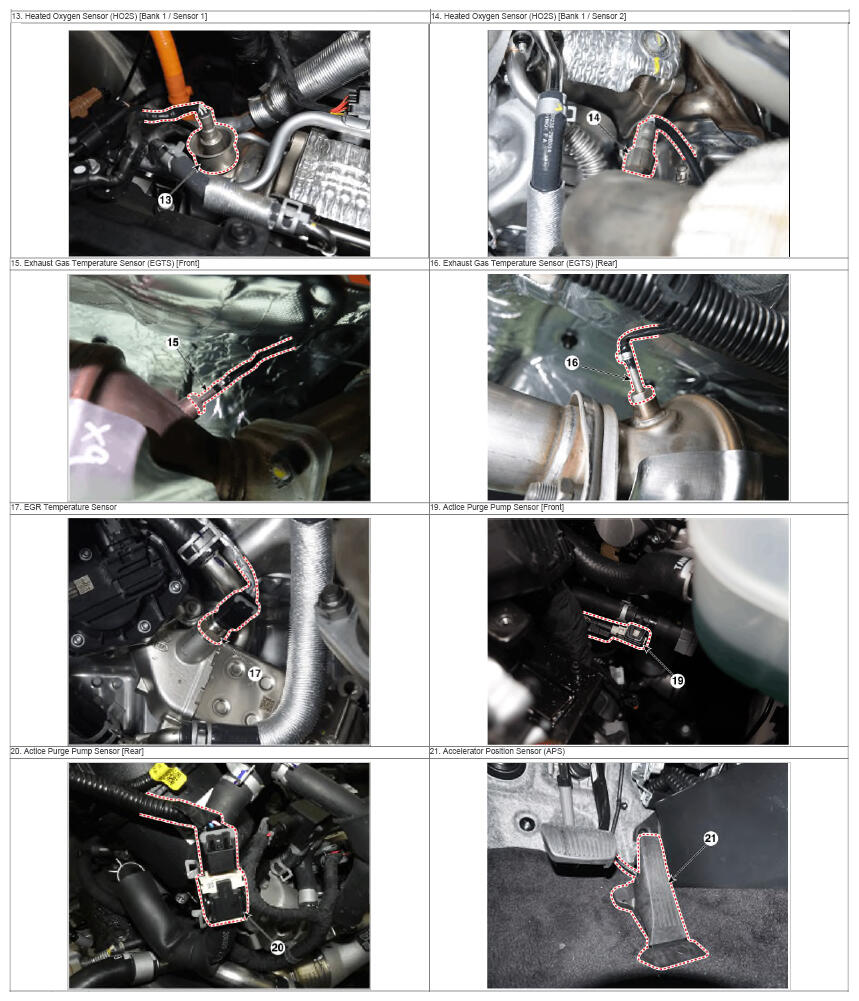

G16172428Courtesy of HYUNDAI MOTOR AMERICA

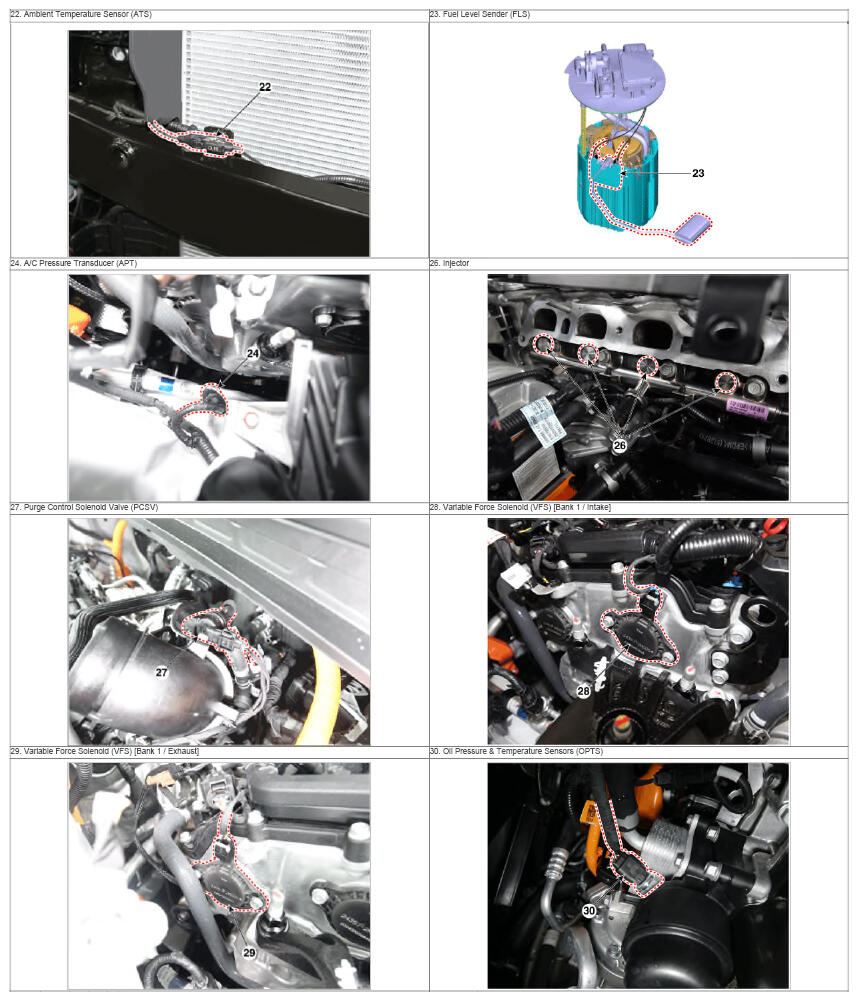

G16172429Courtesy of HYUNDAI MOTOR AMERICA

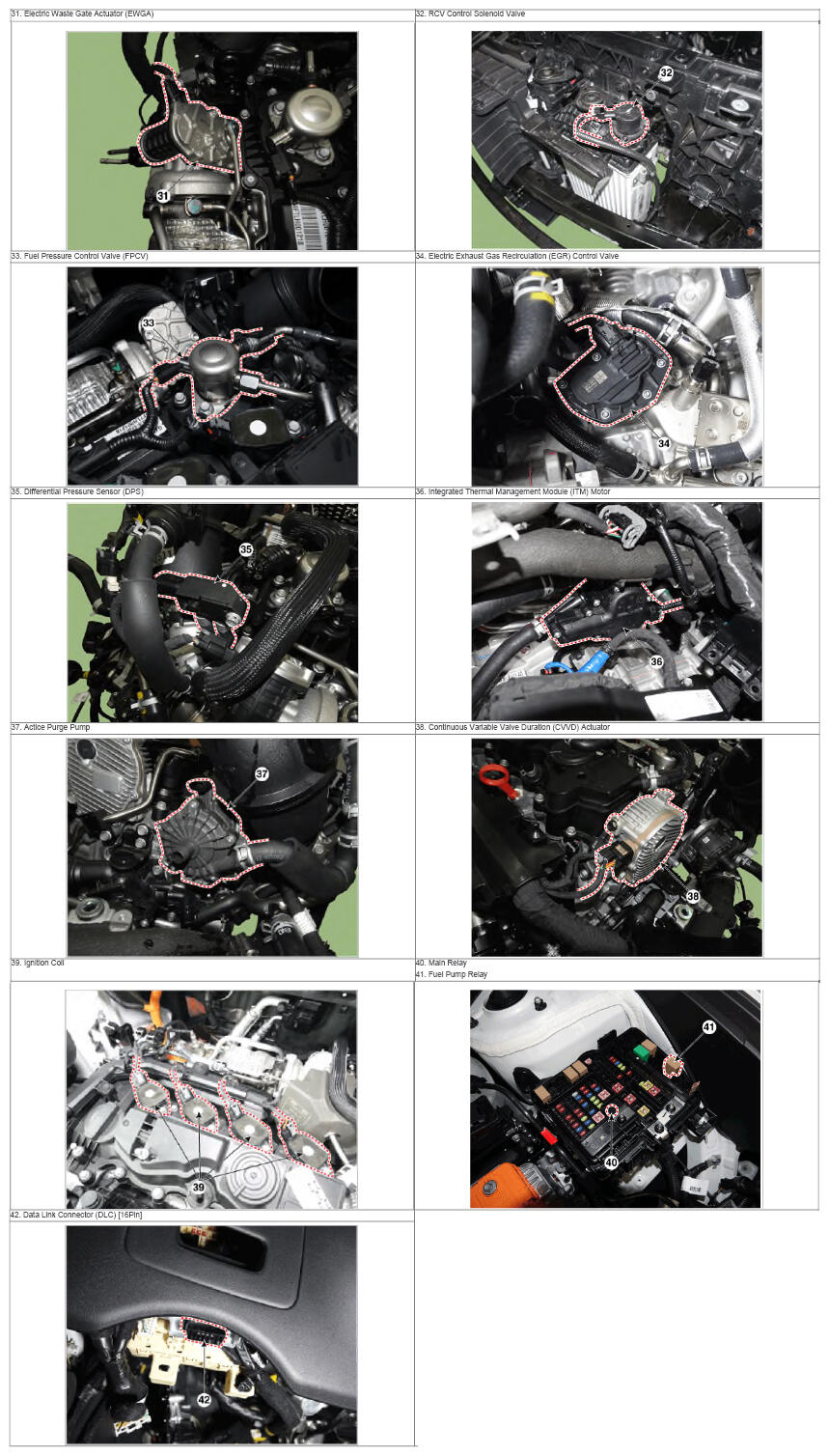

G16172430Courtesy of HYUNDAI MOTOR AMERICA
